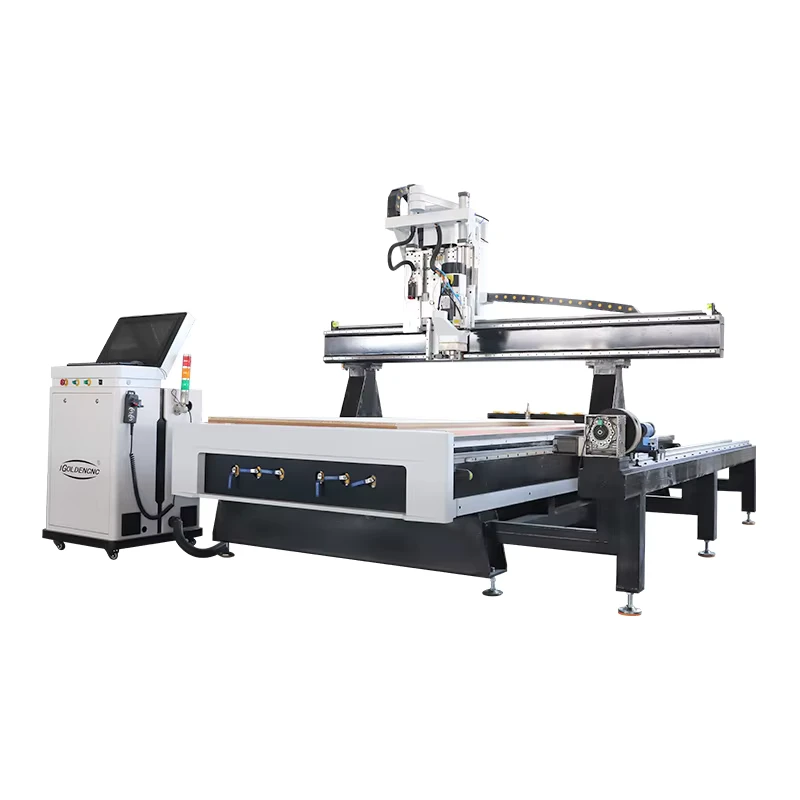

Automatic Tool Change Cnc Router 1325 8x4 4x8 Wood Carving Furniture Cabinet Machine with Rotary Device Marking Head

Automatic Tool Change Cnc Router 1325 8x4 4x8 Wood Carving Furniture Cabinet Machine with Rotary Device Marking Head
  • Automatic Tool Change Cnc Router 1325 8x4 4x8 Wood Carving Furniture Cabinet Machine with Rotary Device Marking Head

    • Automatic Tool Change Cnc Router 1325 8x4 4x8 Wood Carving Furniture Cabinet Machine with Rotary Device Marking Head

    Request a Quote
    Working Table Size(mm)1300×2500number of axes4
    voltageAC380V/50HZmachine typeCNC Router
    No. of SpindlesATCkey selling pointsEco-Friendly
    core componentsBearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearboxcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)13252130weight (kg)1800
    range of spindle speed(r.p.m)1 - 24000 rpmpositioning accuracy (mm)0.01
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.01Spindle Motor Power (kw)9kw atc cnc wood machine
    dimension(l*w*h)1300*2800mm atc cnc routerworking area1300*2500*400mm
    spindleHQD 9.0kw Air Cooling ATC Spindle +5W laser marking headXYZ StructureXY-helical rack pinion,Z-ball screw
    lubrication systemautomatic lubrication systemoperating systemTaiwan LNC
    Keywordsatc wood cnc routerApplicationMDF WOOD ACRYLIC ALUMINUM
    FunctionCutting Engraving Carving MillingUsageWoodworking Signs Furniture Moulding Making
    FeatureImproves Processing Efficiency
