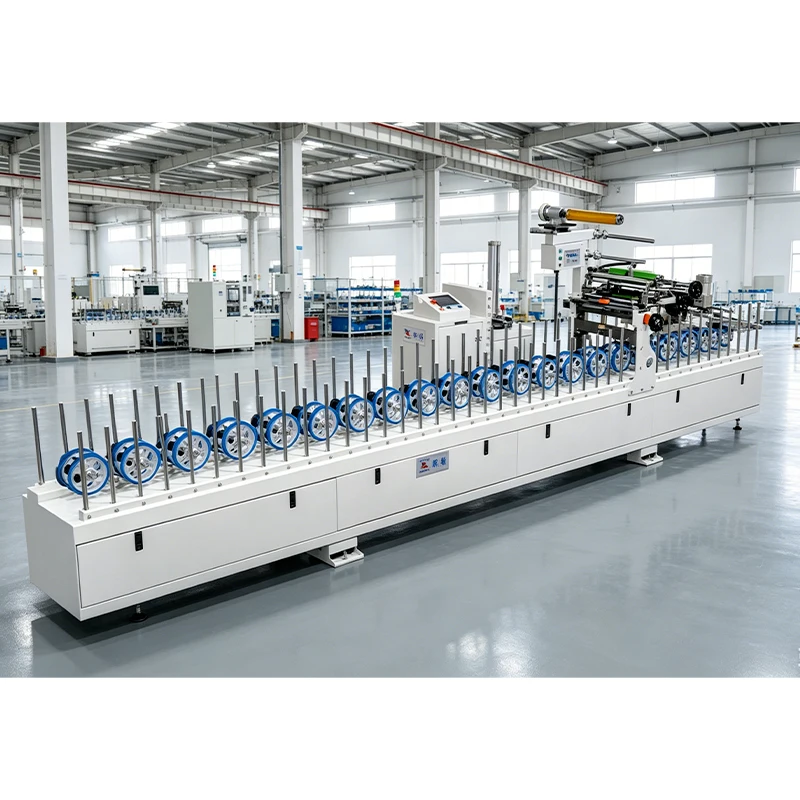

Automatic Profile Wrapping Machine for PVC Foil Veneer with 300mm Covering Width and 0 60m min Feeding Speed

Automatic Profile Wrapping Machine for PVC Foil Veneer with 300mm Covering Width and 0 60m min Feeding Speed
  • Automatic Profile Wrapping Machine for PVC Foil Veneer with 300mm Covering Width and 0 60m min Feeding Speed

    • Automatic Profile Wrapping Machine for PVC Foil Veneer with 300mm Covering Width and 0 60m min Feeding Speed

    Request a Quote
    voltage380Vcore componentsEngine, PLC, Motor
    key selling pointsAutomaticmachinery test reportProvided
    video outgoing-inspectionProvidedpower(w)1.5
    weight (kg)3450dimension(l*w*h)6000*1270*1800mm(236.22*50*70.87in)
    Max film covering width300mmMax process thickness200mm
    Min. process length600mmFeeding speed0-60m/min
    Max diameter ofroll cover material400mmFeeding motor power1.5kw
    Heating powerLight: 3X1KW Gluing machine:3.5kw Hot air guns:6 X 1.6 kwOverall dimensions6000*1270*1800mm
    Weight3450kg
