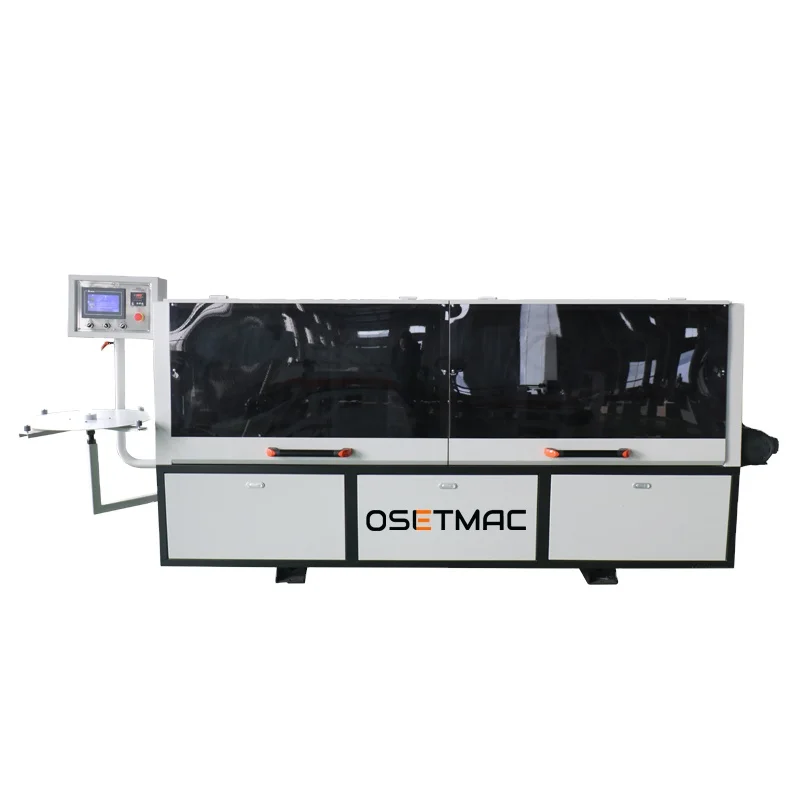

Automatic Edge Banding Machine With Six Functions SYS 320

Automatic Edge Banding Machine With Six Functions SYS 320
  • Automatic Edge Banding Machine With Six Functions SYS 320

    • Automatic Edge Banding Machine With Six Functions SYS 320

    Request a Quote
    typeEdge Banding Machinevoltage380v
    core componentsMotorvideo outgoing-inspectionProvided
    key selling pointsLong Service Lifepower (kw)6.3KW(8.45hp)
    weight (kg)820 kg(1807.79lb)dimension(l*w*h)3155x730x1350mm(124.21x28.74x53.15in)
    Panel Thickness10-60mmPanel Width≥60mm
    Panel Length≥150mmWorkign Pressure0.6Mpa
    Edge Thickness0.3-3mmGluing Motor0.37KW/50HZ/1400RPM
    End cutting Motor0.37KW * 2/200HZ/12000RPMFine trimming Motor0.37KW * 2/50HZ/1400RPM
    Conveyor Motor1.5KWGluing Pot Heating Power1.5KW
