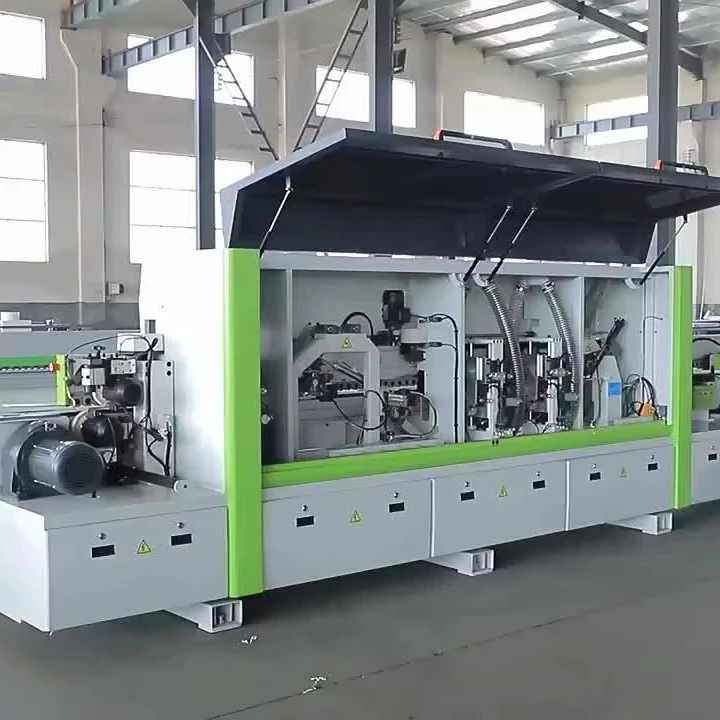

Automatic Edge Banding Machine High Speed with Pre Milling and Corner Rounding

Automatic Edge Banding Machine High Speed with Pre Milling and Corner Rounding
  • Automatic Edge Banding Machine High Speed with Pre Milling and Corner Rounding

    • Automatic Edge Banding Machine High Speed with Pre Milling and Corner Rounding

    Request a Quote
    typeEdge Banding MachineusageHDF Production/MDF production
    voltage380vcore componentsMotor, PLC
    Material TypeWoodvideo outgoing-inspectionProvided
    key selling pointsHigh-Accuracypower (kw)16.37
    weight (kg)2950dimension(l*w*h)6700*850*1520mm(263.78*33.46*59.84in)
    After-sales Service ProvidedEngineers available to service machinery overseasBanding Tape Thickness0.4-3mm
    Banding type width12-65mmWorkpiece thickness10-60mm
    Workpiece length≥100mmWorkpiece width≥50mm
    Feeding Motor Power3.7kwAir Pressure0.8Mpa
    NameIndustrial Automatic Edge Banding Machine PLC Control Pre-Millingpanel feed speed(m/min)26
