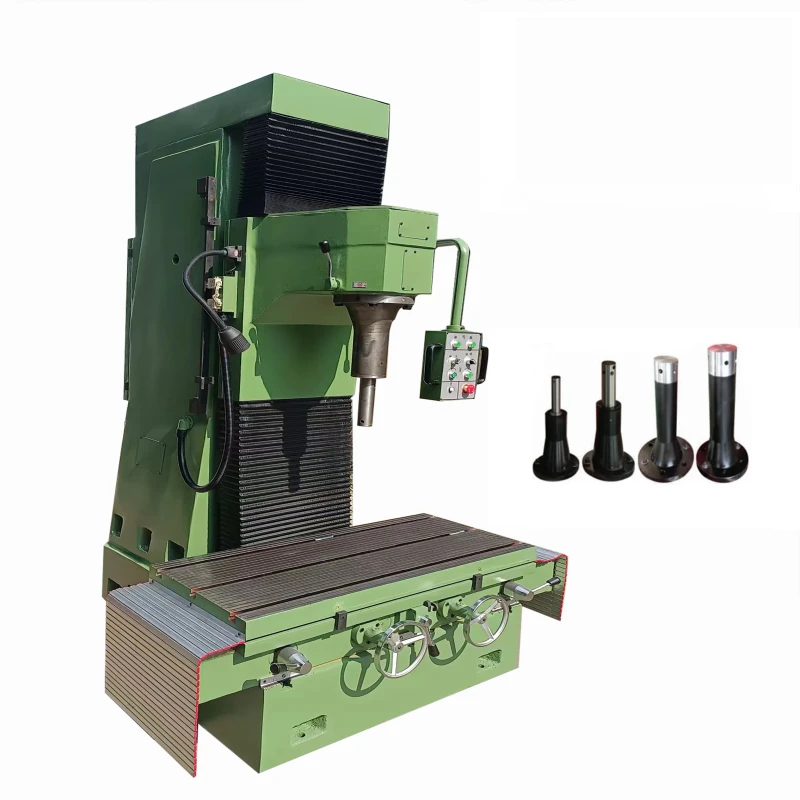

Automatic Boring and Grinding Machine

Automatic Boring and Grinding Machine
  • Automatic Boring and Grinding Machine

    • Automatic Boring and Grinding Machine

    Request a Quote
    typeVERTICALcnc or notNormal
    table size (mm)1200*500spindle motor power(kw)3
    number of axes4voltage380V/220V
    no. of spindles3machinery test reportProvided
    video outgoing-inspectionProvidedcore componentsEngine, Motor
    key selling pointsHigh-Accuracytable travel (x) (mm)200 mm(7.87in)
    table travel (y) (mm)500 mm(19.69in)table travel (z) (mm)100 mm(3.94in)
    range of spindle speed(r.p.m)350 r.p.mweight (t)6 T(6.61short tons )
    travel (w-axis) (mm)900 mm(35.43in)positioning accuracy (x axis) mm0.04
    positioning accuracy (y axis) mm0.04positioning accuracy (z axis) mm0.04
    production capacity50 sets/monthdimension(l*w*h)2250-1588-2335mm
    Namecylinder boring and surface milling machineMax. Boring Depth500mm
    ApplicationMetal processingSpindle Speed Range53-840rev/min
    Boring Diameter35-200mmSpindle Feed Range0.05-0.20mm/rev
    Table cross travel100mmTable Longitudinal Travel900mm
    Overall Dimension (L*W*H)2250*1588*2335mmN.W/G.W kg3300/3800kg
