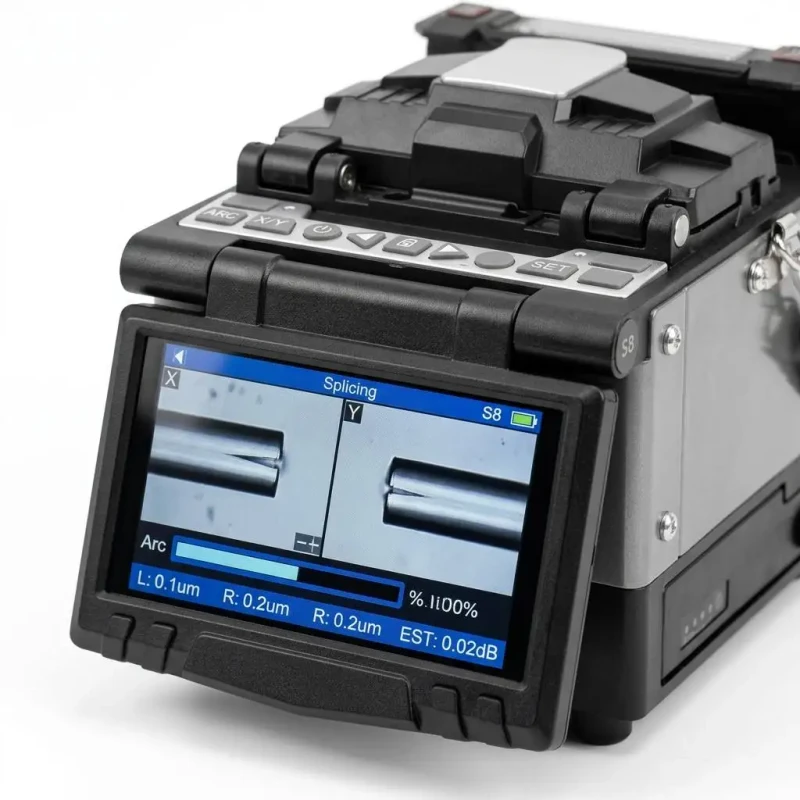

Automatic 6Motors Fiber Optic Fusion Splicer 7s Fast Splicing Kit 18s Heating Core Alignment Machine For FTTH FTTx
Automatic 6Motors Fiber Optic Fusion Splicer 7s Fast Splicing Kit 18s Heating Core Alignment Machine For FTTH FTTx
| Type | Testers &Tools | Connector Type | Applicable for Bare Fiber, Pigtail, Patch Cord |
| Power Source | AC 100-240V, DC11~13.5V | Use | FTTH, FTTx, 5G Base Station Construction |
| Network | Wi-Fi, FTTH, 5G Network | Warranty Time | 1Year |
| Port | 4-in-1 Universal Fixture Holder | Fiber Holder | Multi-function, suitable for bare fibers, drop cables, pigtails. Etc. |
| Applicable Fiber | SM(G.652), MM(G.655),DS(G.653), NZ DS(G.655). BI(G.657) | Alignment Method | Core-to- core |
| Diameter of Fiber | Cladding:80-150um; COATING:100-1000um | Fiber Cleaved Length | 8-16mm |
| Working Time | Splicing Time(fast 7S) Tube Heating Time(fast 18s) | Splicing program | Many(self-regulation) |
| Battery capacity | 6800mAh, typical 300times(splice+heat) | Dimension | 130*154*132mm, weight: 2KG(with battery) |
| Electrode life | 500 ARC discharges |
