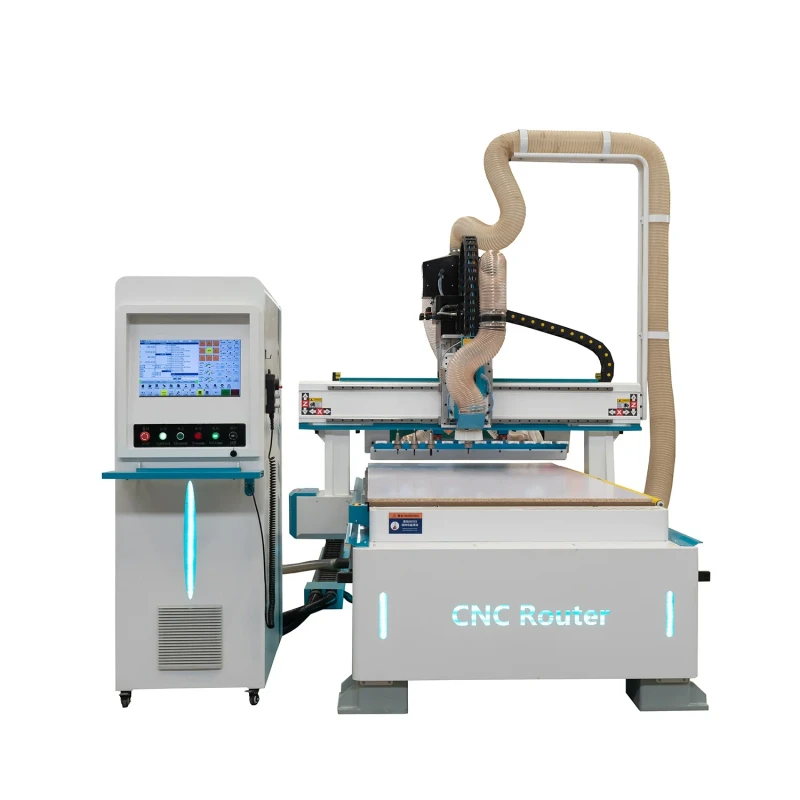

Auto Tool Change Wood Carving Cutting Machine ATC 3 Axis Furniture Center Processing Bed CNC Router
Auto Tool Change Wood Carving Cutting Machine ATC 3 Axis Furniture Center Processing Bed CNC Router
| Working Table Size(mm) | 1300×2500 | number of axes | 3 |
| voltage | 380V 3P 50-60HZ | machine type | CNC Router |
| No. of Spindles | Single | key selling points | High-Accuracy |
| Accessory Type | Dust collection | core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox |
| cnc or not | CNC | video outgoing-inspection | Provided |
| machinery test report | Provided | Power (kW) | 9 |
| weight (kg) | 2000 | range of spindle speed(r.p.m) | 1 - 24000 rpm |
| positioning accuracy (mm) | 0.01 | travel (x axis)(mm) | 1300 |
| travel (y axis)(mm) | 2500 | repeatability (x/y/z) (mm) | 0.01 |
| Spindle Motor Power (kw) | 9.0 | dimension(l*w*h) | 2500*1300* 300mm(98.43*51.18*11.81in) |
| Keywords | atc cnc wood router | Spindle Power | 9.0KW Atc Air Cooling Spindle |
| Motor | Japan Yaskawa Servo Motor | Working area | 1300x2500mm |
| Table Surface | Vacuum Combined T-slot Table | Control system | Taiwan LNC Control System |
| Inverter | Taiwan Delta Inverter | Transmission | Helical Rack Pinion |
| Guide rail | Taiwan Hiwin Square Guide Rail | Software | Artcam/Type3 |
