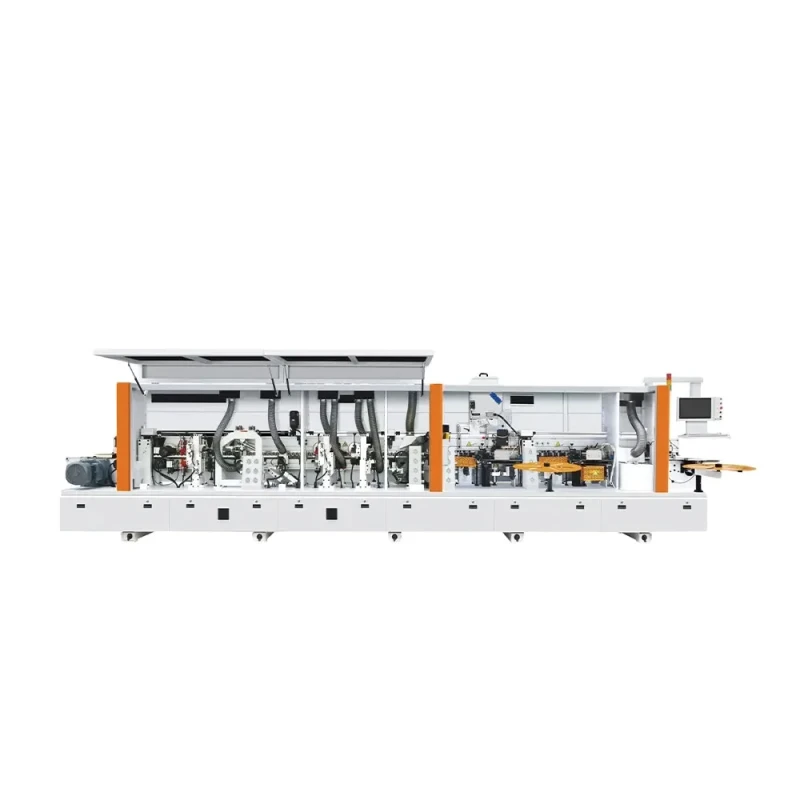

Auto Production Line Equipment Edge Banding Machine Edge Bander Machine From China
Auto Production Line Equipment Edge Banding Machine Edge Bander Machine From China
| type | Edge Banding Machine | usage | Edge banding |
| voltage | 380 V | core components | Motor, PLC, Engine |
| video outgoing-inspection | Provided | key selling points | Full Automatic |
| power (kw) | 8.6KW(11.53hp) | weight (kg) | 2000 kg(4409.25lb) |
| dimension(l*w*h) | 4300*750*1580mm(169.29*29.53*62.20in) | Product name | edge banding trimmer edge banding machine edge bander machine |
| Edgeband thickness | 0.4-3mm | Panel thickness | 9-55mm |
| Air compressor | 0.6mpa | Conveyor motor | 3.7KW 50 shaft |
| Pre-milled motor | 2.2kw*2 Frequency Control 12000 RPM | Front and rear end trimming motor | 0.55kw*2 Frequency Control 12000 RPM |
| Upper and lower rough trimming motors | 0.55kw*2 Frequency Control 12000 RPM | Upper and lower precision repair motors | 0.55kw*2 Frequency Control 12000 RPM |
| Tracking chamfering motor | 0.3kw*2 Frequency Control 12000 RPM |
