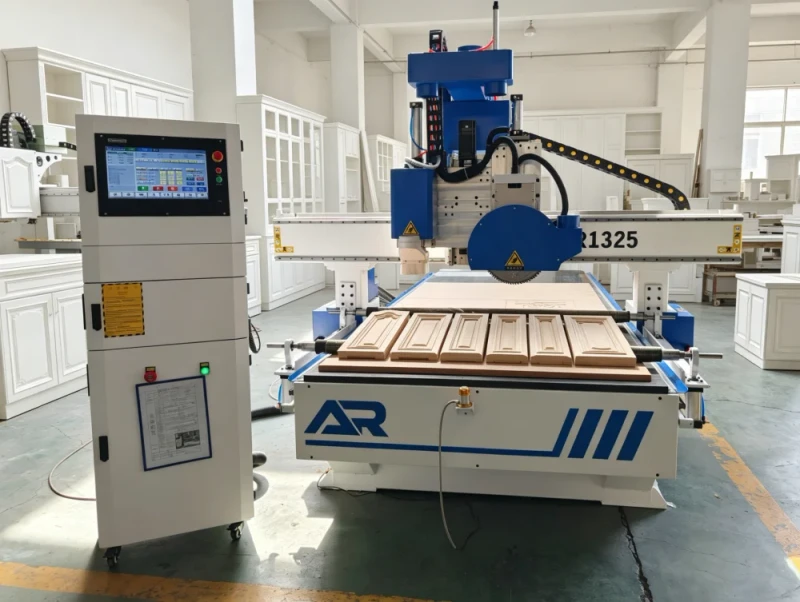

Aurora 1325 1330 Panel Saw Machine Wood Cutting Panel Saw Cutting Machine CNC Router Machine

Aurora 1325 1330 Panel Saw Machine Wood Cutting Panel Saw Cutting Machine CNC Router Machine
  • Aurora 1325 1330 Panel Saw Machine Wood Cutting Panel Saw Cutting Machine CNC Router Machine

    • Aurora 1325 1330 Panel Saw Machine Wood Cutting Panel Saw Cutting Machine CNC Router Machine

    Request a Quote
    number of axes4voltageAC220V/380V
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsEasy To Operatecore componentsMotor, PLC
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)1500
    range of spindle speed(r.p.m)0 - 24000 rpmpositioning accuracy (mm)0.05
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.03Spindle Motor Power (kw)3.7/4.5/5.5/6
    dimension(l*w*h)3100x1950x1700mm(122.05x76.77x66.93in)Product nameCNC Router with Saw
    Spindle3/4.5/5.5kw/6kw SpindleControl systemShanLong 1000 4-axis Controller
    TransmissionXY-axis:rack Z-axis:ball ScrewSoftwareUcancam / ArtCam/TYPE3/Power Mill
    Working tableAluminum T Slot Working TableGuide railTaiwan Hiwin Square Guide Rail
    InverterBEST InverterMotor and driverStepper Motor Leadshine Driver (Servo is optional)
    Working area1300x2500mm/1500x3000mm/2000x3000mm/2000x4000mm etc
