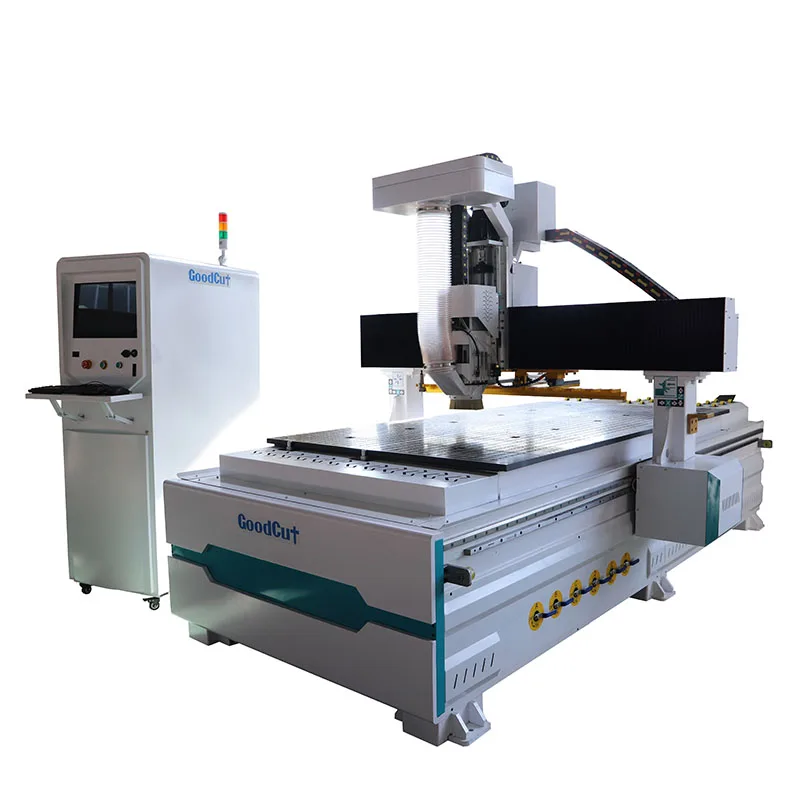

ATC CNC Machine 1325 Boring Machine for Woodworking

ATC CNC Machine 1325 Boring Machine for Woodworking
  • ATC CNC Machine 1325 Boring Machine for Woodworking

    • ATC CNC Machine 1325 Boring Machine for Woodworking

    Request a Quote
    number of axes3voltage220V/380V
    machine typeCNC RouterNo. of SpindlesATC
    key selling pointsHigh Productivitycore componentsMotor, PLC, Engine
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)2200
    positioning accuracy (mm)0.02travel (x axis)(mm)1300
    travel (y axis)(mm)2500repeatability (x/y/z) (mm)0.01
    Spindle Motor Power (kw)1.5dimension(l*w*h)1300*2500*250mm(51.18*98.43*9.84in)
    Product nameatc cnc machine 1325 boring machine for woodworkingWorking area1300x2500mm, 4*8 feet
    Tool magazine8pcs, 10pcs 12pcs linear tool change magazineControl systemTaiwan Syntec Control System, Weihong NK260
    SpindleHQD 9kw air cooling ATC spindleTransmissionTaiwan HIWIN 30mm guide rails, Taiwan TBI Ball Screw
    Drive motorLeadshine servo 850w, or Japanse Yaskawa servo motor driverTablevacuum adsorption + T-slot
    After-sales Service Provided24h Online supportWarranty ServiceFree Spare parts
