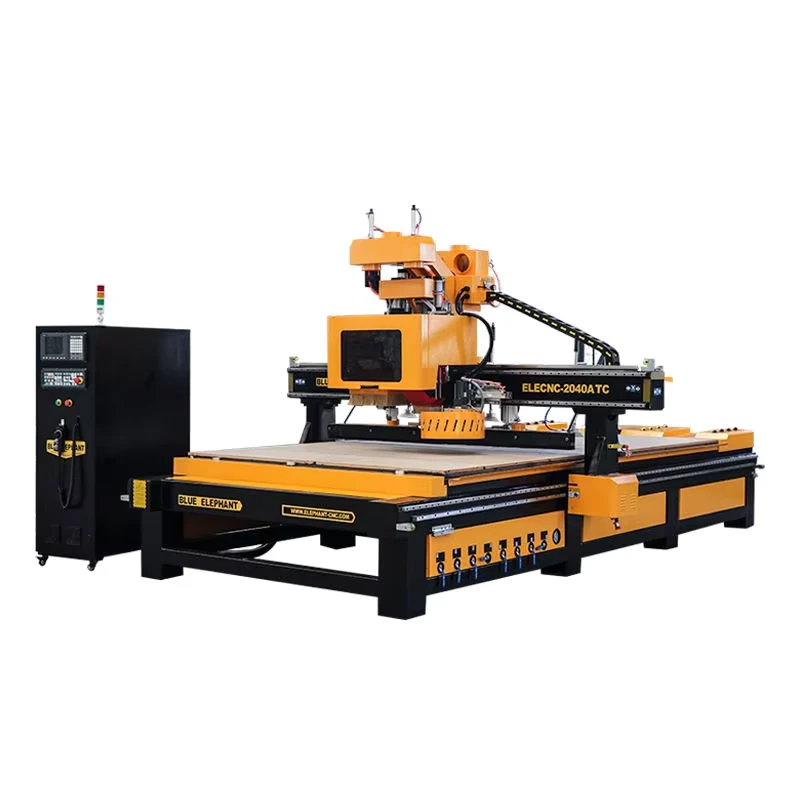

Atc Cnc Drilling Routing Machine Router With Drill Banl Gang Woodworking For Wood Cabinet
Atc Cnc Drilling Routing Machine Router With Drill Banl Gang Woodworking For Wood Cabinet
| Working Table Size(mm) | 2000*4000 | number of axes | 3 |
| voltage | AC380V (Option: 220V) | machine type | CNC Router |
| No. of Spindles | ATC | key selling points | Automatic |
| core components | Motor, Pump | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 11 | weight (kg) | 1500 |
| range of spindle speed(r.p.m) | 1 - 24000 rpm | positioning accuracy (mm) | 0.02 |
| travel (x axis)(mm) | 2000 | travel (y axis)(mm) | 4000 |
| repeatability (x/y/z) (mm) | 0.02 | Spindle Motor Power (kw) | 9.6 |
| dimension(l*w*h) | 3200*2140*1850mm(125.98*84.25*72.83in) | Working area | 2000x4000x300mm |
| Spindle | 9.6KW Italy original ATC air cooling spindle | Tool magazine | 8pcs tool magazines carousel type |
| Motor and driver | 1000W YASKAWA servo driver and 1000W servo motor | Lubrication system | Auto oil Lubrication |
| Tool sensor | Auto tool sensor calibration | Inverter | 11kw Delta inverter |
| Feature | vertical drilling faster speed on cabinet furniture | Transmission | helical rack,PMI linear guide rail, TBI ball screw |
| Advantage | save time of auto loading and auto unloading workpiece |
