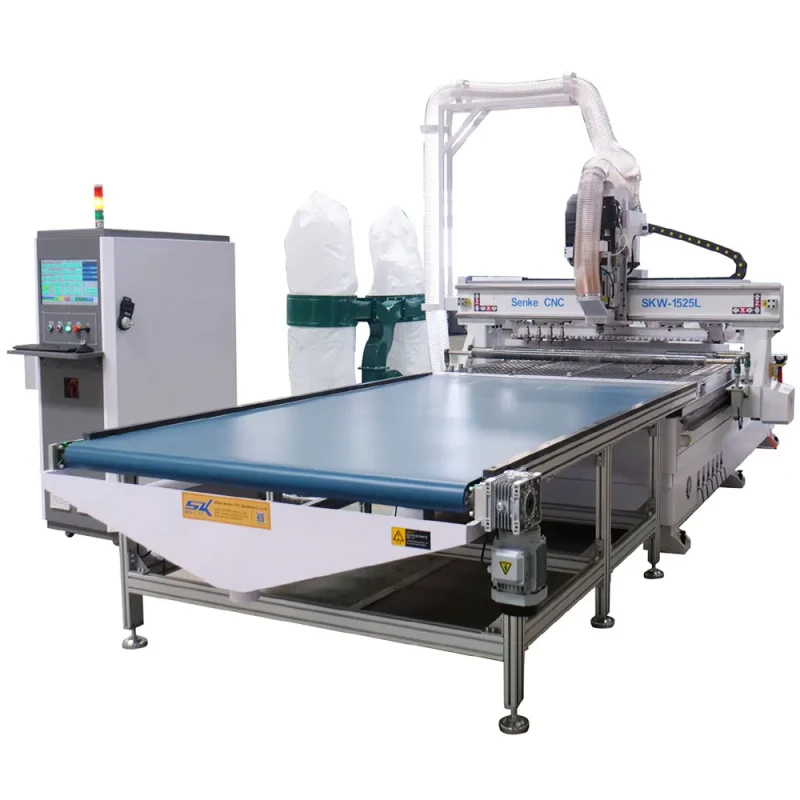

ATC 5D Vertical Nesting CNC Router for Furniture Making Mach3 Control System with Motor Gear Engine Gearbox Core Components
ATC 5D Vertical Nesting CNC Router for Furniture Making Mach3 Control System with Motor Gear Engine Gearbox Core Components
| Working Table Size(mm) | 1300×2500 | number of axes | optional |
| voltage | 220v/380v | machine type | CNC Router |
| No. of Spindles | Single | key selling points | High Rigidity |
| core components | Bearing, Motor, Gear, Pressure Vessel, Engine, Gearbox, Other | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 3.7 | weight (kg) | 1500 |
| range of spindle speed(r.p.m) | 1800 - 2400 rpm | positioning accuracy (mm) | 0.01 |
| travel (x axis)(mm) | 0.01 | travel (y axis)(mm) | 0.01 |
| repeatability (x/y/z) (mm) | 0.01 | Spindle Motor Power (kw) | 3kw/4.5kw/6kw |
| dimension(l*w*h) | 1500*3000*600 | Product name | atc nesting cnc router |
| X,Y Movement | Rack and Pinion | Z Movement | Ball Screw Transmission |
| Guide | Taiwan Hiwin/PMI 20square Rails | Max Idling Speed | 60000mm/Min |
| Max Engraving Speed | 4000mm/Min | Spindle Power | 3kw/4.5kw/6kw |
| Inverter | 3.7kw/7.5kw | Driver Motors | Stepper Motors |
| Drivers | Leadshine |
