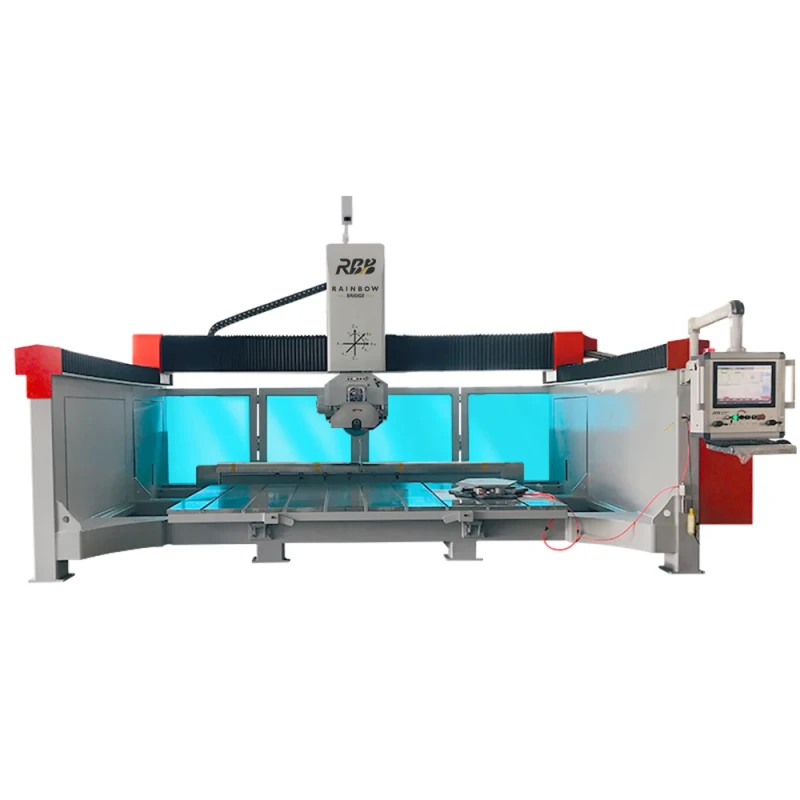

All Round 5+1 Axis HQ-3220DST CNC Stone Cutting Machine High Power Motor for Granite Marble Countertop Sink Opening
All Round 5+1 Axis HQ-3220DST CNC Stone Cutting Machine High Power Motor for Granite Marble Countertop Sink Opening
| Type | Stone Cutting Machine | Use | Cutting for Granite Marble Quartz Porcelain Countertop Tiles |
| Voltage | 380 V | Cutting thickness (max) | 55mm(2.17in) |
| Power(W) | 29kw(38.89hp) | Core Components | Motor, Pump, Gearbox, Engine |
| Key Selling Points | Easy To Operate | Machinery Test Report | Provided |
| Video outgoing-inspection | Provided | Weight | 5000 kg(11023.11lb) |
| Dimension(L*W*H) | 5500*3000*2300 | Model | HQ-3220DST |
| X/Y/Z Axis working size | 3200*2000*500mm | Diameter of blade | 400~500mm |
| Blade motor power | 15kw | Rotation speed of blade | 3000~6000rpm |
| Spindle power | ATC spindle 6.5 KW | Max spindle speed | 24000r/min |
| A axis rotation angle | 0 - 90 | C axis rotation angle | 0 - 360 |
| Table Tilting angle | 85 |
