Professional manufacturer of woodworking machinery

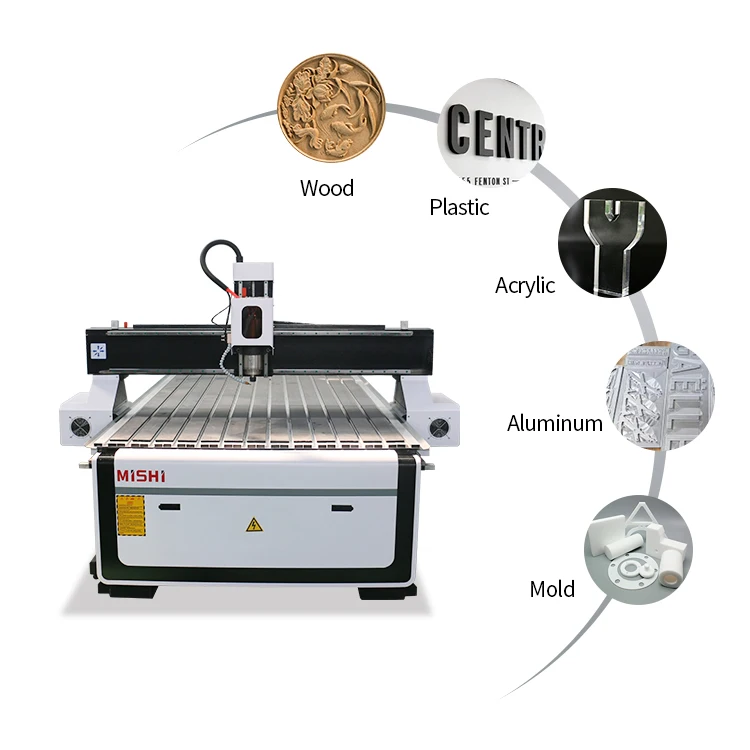

Advertising Sign Making Machine 4x8 1325 5.5kw Spindle CNC Router Machine for Wood Plywood MDF Cutting Milling Engraving
Advertising Sign Making Machine 4x8 1325 5.5kw Spindle CNC Router Machine for Wood Plywood MDF Cutting Milling Engraving
| number of axes | 3 | voltage | 220v/380v |
| machine type | CNC Router | No. of Spindles | Single |
| key selling points | High-Accuracy | Accessory Type | Dust collection |
| core components | Motor, Driver, System, Spindle | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 800 | range of spindle speed(r.p.m) | 1 - 24000 rpm |
| positioning accuracy (mm) | 0.02 | travel (x axis)(mm) | 1300 |
| travel (y axis)(mm) | 2500 | repeatability (x/y/z) (mm) | 0.02 |
| Spindle Motor Power (kw) | 5.5kw(7.38hp) | dimension(l*w*h) | 3250*1700*950mm(127.95*66.93*37.40in) |
| Table Surface | T-slot Aluminum +PVC | Software | Ucancam / ArtCam/TYPE3 |
| Motor and driver | Leashine Stepper Motor Driver | Guide rail | Taiwan Hiwin Square Guide Rail |
| Product name | CNC Wood Working Machine | Application | FOAM MDF WOOD ACRYLIC ALUMINUM |
| Keywords | Cnc Wood Router Engraver | Function | Wood Acylic Plywood MDF Engraving |
| Transmission | XY-axis:rack Z-axis:ball Screw | Working area | 1300x2500x200mm |
