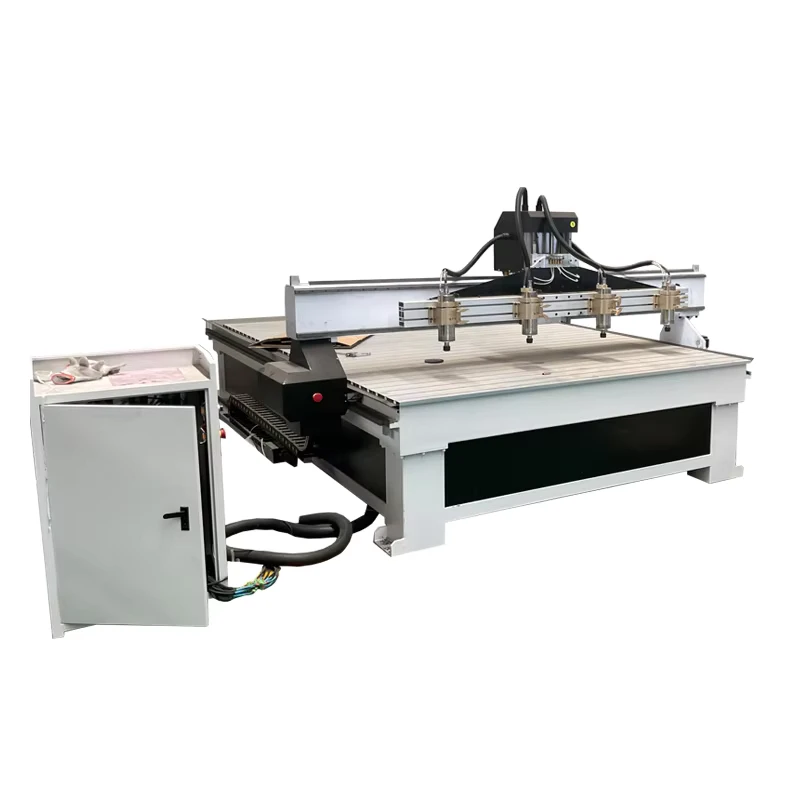

8 Head 3D Multi Spindles CNC Router for Woodworking for Cutting and Engraving

8 Head 3D Multi Spindles CNC Router for Woodworking for Cutting and Engraving
  • 8 Head 3D Multi Spindles CNC Router for Woodworking for Cutting and Engraving

    • 8 Head 3D Multi Spindles CNC Router for Woodworking for Cutting and Engraving

    Request a Quote
    Working Table Size(mm)1300×2500number of axes3
    voltage380v/50hz/3phhasemachine typeCNC Router
    No. of SpindlesMultikey selling pointsMultifunctional
    core componentsBearing, Motor, Gear, PLC, Pressure Vessel, Engine, Gearboxcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)22weight (kg)1800
    range of spindle speed(r.p.m)0 - 24000 rpmpositioning accuracy (mm)0.03
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.02Spindle Motor Power (kw)3
    dimension(l*w*h)3500*2300*1800Working area1300x2500mm
    ApplicationFOAM MDF WOOD ACRYLIC ALUMINUMKeywordsCnc Wood Router Engraver
    Control systemDSP A11 Control SystemInverterFuling Inverter
    Spindle power3.5KW / 4.5KW / 6KWGuide railTaiwan Hiwin Square Guide Rail
    Working tableAluminum Profile+PVCMotor and driverLeashine Stepper Motor Driver
    TransmissionXY-axis:rack Z-axis:ball Screw
