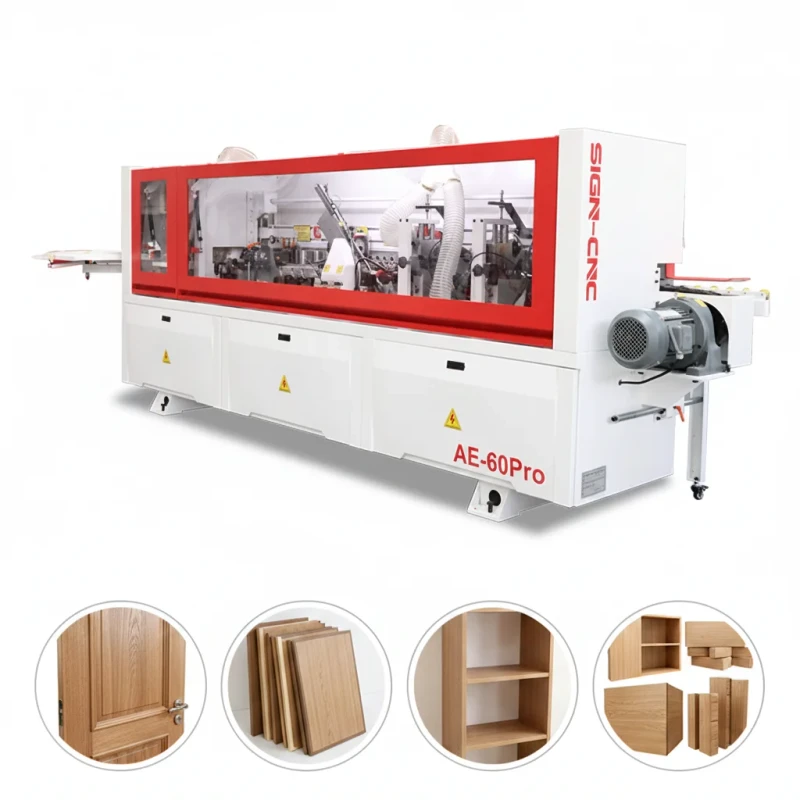

7 Functions with Pre Milling End Fine Trimming Edge Banding Machine for Wood Furniture Production

7 Functions with Pre Milling End Fine Trimming Edge Banding Machine for Wood Furniture Production
  • 7 Functions with Pre Milling End Fine Trimming Edge Banding Machine for Wood Furniture Production

    • 7 Functions with Pre Milling End Fine Trimming Edge Banding Machine for Wood Furniture Production

    Request a Quote
    typeEdge Banding MachineusagePlywood Production
    voltage380 V, 220 V, 415 VPlatform Dimensions3000mm*1300mm(118.11in*51.18in)
    core componentsPLC, Gearbox, Gear, Pump, Motor, BearingMaterial TypeWood, PVC, Polyester
    video outgoing-inspectionProvidedkey selling pointsEasy To Operate
    power (kw)10weight (kg)1100
    dimension(l*w*h)4100mm*700mm*1400mm(161.42in*27.56in*55.12in)Gluing motor power0.55KW
    Pre-milling motor power1.8*2=3.6KWEnde trimming motor power0.37*2=0.74KW
    Fine trimming motor power0.5*2=1KWBuffing motor power0.25*2=0.5KW
    Main motor Power3.7KWTotal power10KW
    Min width of the wood≥60mmMIn length of the wood≥120mm
    Edge band thickness0.4-3mm
