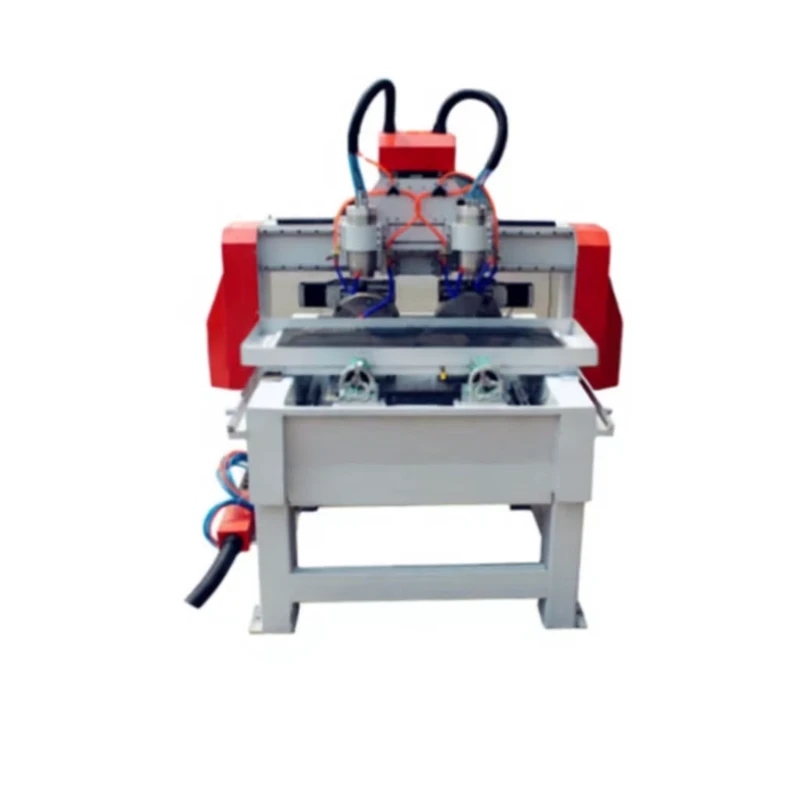

6090 Double Spindle 4 Axis Rotary CNC Router Machine Mach3 NC Studio Stepper Motor Drive for Wood Engraving Carving

6090 Double Spindle 4 Axis Rotary CNC Router Machine Mach3 NC Studio Stepper Motor Drive for Wood Engraving Carving
  • 6090 Double Spindle 4 Axis Rotary CNC Router Machine Mach3 NC Studio Stepper Motor Drive for Wood Engraving Carving

    • 6090 Double Spindle 4 Axis Rotary CNC Router Machine Mach3 NC Studio Stepper Motor Drive for Wood Engraving Carving

    Request a Quote
    number of axes4voltage220V/380V, 50HZ
    machine typeCNC RouterNo. of SpindlesDouble
    key selling pointsEasy To Operatecore componentsMotor, Pump
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)600
    positioning accuracy (mm)0.03travel (x axis)(mm)600
    travel (y axis)(mm)900repeatability (x/y/z) (mm)0.03
    dimension(l*w*h)600*900*120mm(23.62*35.43*4.72in)Spindle2.2KW water-cooled spindle, 1 set, 6000-24000rpm
    Drive systemstepper motorsGuide railX, Y, Z Taiwan HIWIN linear square guide rail 20mm
    Working tableT-slotMaintainanceOil lubricating system
    Working voltage380/ 220V, 50HZStructureRotary Cylinder
