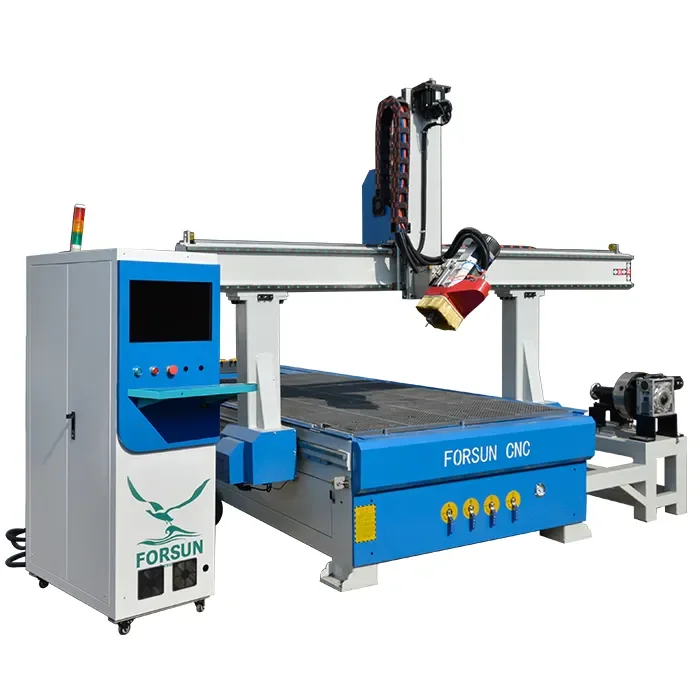

6090 4040 1325 4 Aix Wood CNC Router with Rotary for Woodworking CNC Engraving Machine 3D Mini CNC Router Machine
6090 4040 1325 4 Aix Wood CNC Router with Rotary for Woodworking CNC Engraving Machine 3D Mini CNC Router Machine
| number of axes | 4 | voltage | 380 V, 200 V |
| machine type | CNC Router | No. of Spindles | Single |
| key selling points | Multifunctional | Accessory Type | Scanner |
| core components | Bearing, Motor, Pump, PLC, Engine | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 2000 | range of spindle speed(r.p.m) | 1 - 240000 |
| positioning accuracy (mm) | 0.03 | travel (x axis)(mm) | 1300 |
| travel (y axis)(mm) | 2500 | repeatability (x/y/z) (mm) | 200 |
| dimension(l*w*h) | 3750*2290*2650mm(147.64*90.16*104.33in) | Application | Wood Working |
| Item | Cnc Router Wood Caving Machine | Spindle power | 9.0kw ATC Air Cooling |
| Spindle | Italy HSD Spindle | inverter | Taiwan Delta |
| Transmission in X, Y axis | Helical Rack and opinion | Working area | 1300mm*2500mm*500mm |
| Guide rail | 25 Taiwan HIWIN Linear Guide Rail | motor and driver | Stepper motor and driver |
| Control system | Taiwan Syntec Control System |
