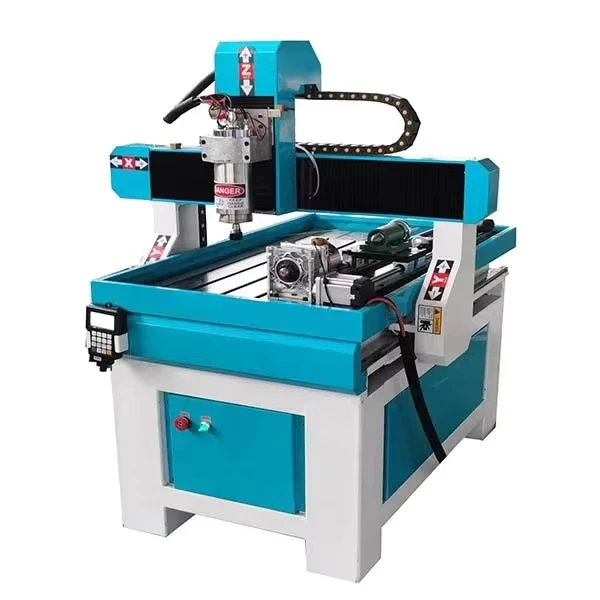

6060 6090 Small Size Cnc Router 4 Axis Rotary Mdf Plywood Engraving Cnc
6060 6090 Small Size Cnc Router 4 Axis Rotary Mdf Plywood Engraving Cnc
| Working Table Size(mm) | 600×900 | number of axes | 4 |
| voltage | AC380V/50HZ | machine type | CNC Router |
| No. of Spindles | Single | key selling points | Easy To Operate |
| core components | Bearing, Motor, Pump, Gear, PLC, Engine, Gearbox, Other | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 9 | weight (kg) | 300 |
| range of spindle speed(r.p.m) | 0 - 24000 rpm | positioning accuracy (mm) | 0.03 mm(0in) |
| travel (x axis)(mm) | 600 mm(23.62in) | travel (y axis)(mm) | 900 mm(35.43in) |
| repeatability (x/y/z) (mm) | 0.03 mm(0in) | Spindle Motor Power (kw) | 3kw(4.02hp) |
| dimension(l*w*h) | 600*900*200mm(23.62*35.43*7.87in) | Product name | 6090 Mini Cnc Router machine for wood carving |
| Application | Wood Working Cnc Router | Spindle | 3kw Water Cooling Spindle |
| Control system | DSP | Transmission | Ball Screw |
| Table Surface | T-slot Aluminum +PVC | Motor | Stepper |
| Inverter | 3.7kw Fuling Inverter | Software | Artcam/Type3 |
| Guide rail | Taiwan Hiwin Square Guide Rail |
