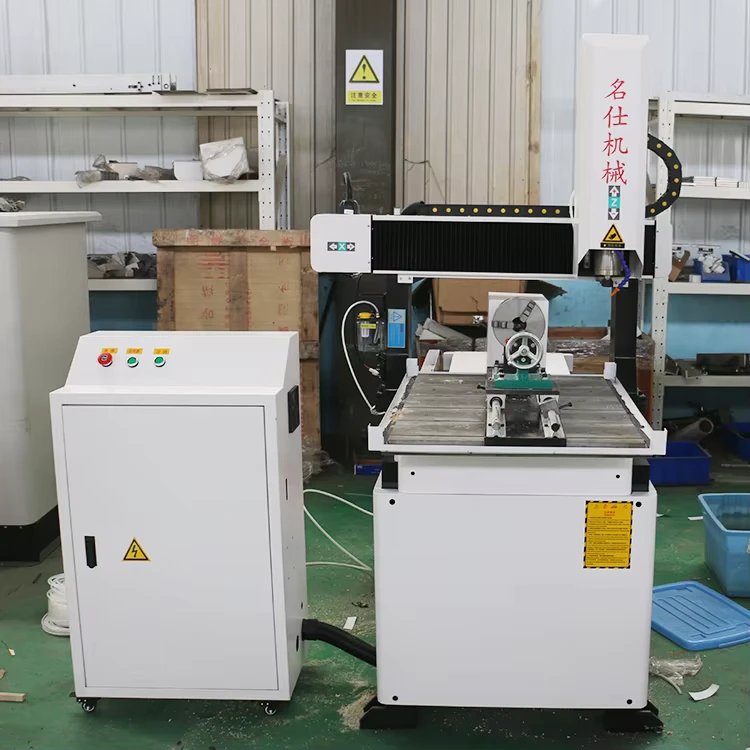

6060 6090 Mini Small 4 Axis CNC Router 3D CNC Wood Carving Machine Metal Steel Sculpture CNC Router Machine with Rotary Axis
6060 6090 Mini Small 4 Axis CNC Router 3D CNC Wood Carving Machine Metal Steel Sculpture CNC Router Machine with Rotary Axis
| Working Table Size(mm) | 600×900 | number of axes | 4 |
| voltage | 380V 50HZ 3P | machine type | CNC Router |
| No. of Spindles | Single | key selling points | Multifunctional |
| core components | Motor, Spindle, System, Driver | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 3.2 | weight (kg) | 500 |
| range of spindle speed(r.p.m) | 1 - 24000 rpm | positioning accuracy (mm) | 0.05 |
| travel (x axis)(mm) | 600 | travel (y axis)(mm) | 900 |
| repeatability (x/y/z) (mm) | 0.05 | Spindle Motor Power (kw) | 3.2 |
| dimension(l*w*h) | 1850*1530*1290mm(72.83*60.24*50.79in) | Countertop Structure | Aluminum Profile Countertop |
| Bed Structure | Welded Steel | Function | Cutting Engraving Non-metal Materials |
| Product name | Mini Metal CNC Milling Machine | Keywords | Cnc Aluminium Router |
| Transmission | Taiwan TBI Ball Screw | Guide rail | Taiwan Hiwin Square Guide Rail |
| Software | Ucancam / ArtCam/TYPE3 | Application | Metal Steel Aluminium Engraving |
| Table Surface | Aluminum Molding |
