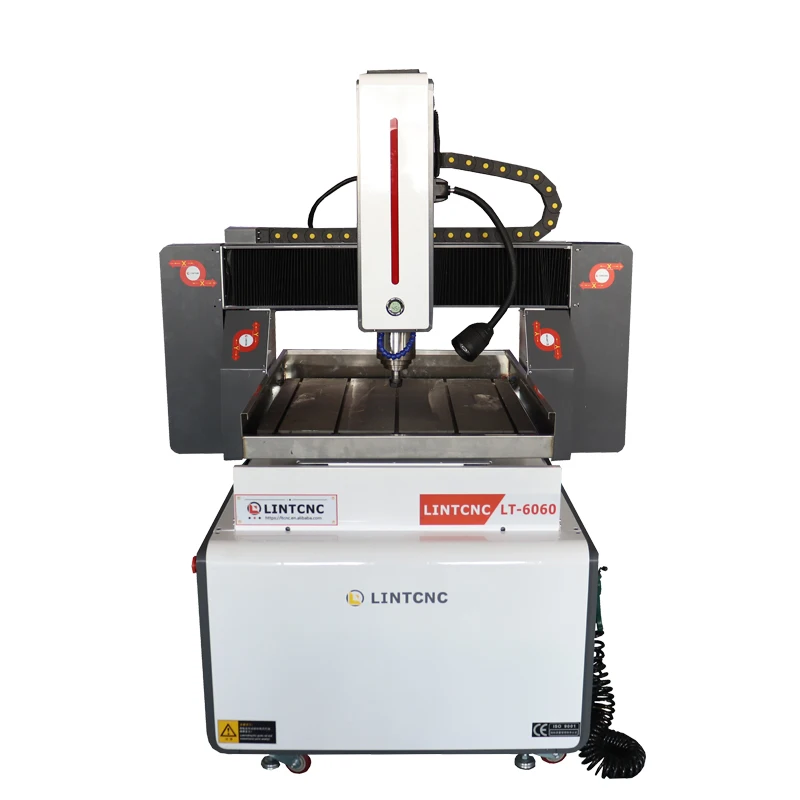

6060 3d Metal CNC Router 3 Axis Wood Engraving Machine 4040 6060 CNC Metal Milling Router for Carving Copper Aluminum Steel
6060 3d Metal CNC Router 3 Axis Wood Engraving Machine 4040 6060 CNC Metal Milling Router for Carving Copper Aluminum Steel
| Working Table Size(mm) | 600×600 | number of axes | 3 |
| voltage | 220V/380V | machine type | CNC Router |
| No. of Spindles | Single | key selling points | Multifunctional |
| core components | spindle | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 430 | range of spindle speed(r.p.m) | 1 - 24000 rpm |
| positioning accuracy (mm) | 0.03 mm(0in) | travel (x axis)(mm) | 600 mm(23.62in) |
| travel (y axis)(mm) | 600 mm(23.62in) | repeatability (x/y/z) (mm) | 0.01 mm(0in) |
| Spindle Motor Power (kw) | 1.5 kw(2.01hp) | dimension(l*w*h) | 1240*1230*1750 |
| Product name | 6060 Advertising Machine | Working area | 600x600mm |
| Spindle | 1.5kw Water Cooling Spindle | Application | Wood Acrylic PVC Engraving Cutting |
| Control system | NCStuido control system | Guide rail | Hiwin Square Linear Guide Rail |
| Transmission | Taiwan TBI Ball Screw | Table Surface | Aluminum T-slot Table wit PVC |
| Software | Ucancam / ArtCam/TYPE3 | Inverter | Shenzhen ET invert |
