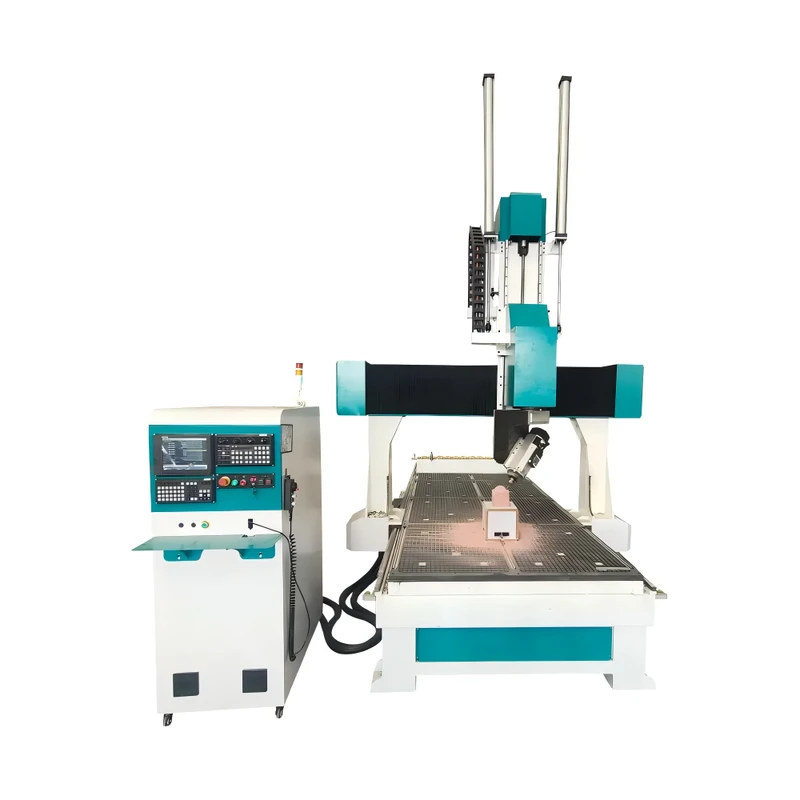

5 Axis CNC Wood Router With Rotary 2030 220V Woodworking Machine 3D CNC Wood Carving Machine

5 Axis CNC Wood Router With Rotary 2030 220V Woodworking Machine 3D CNC Wood Carving Machine
  • 5 Axis CNC Wood Router With Rotary 2030 220V Woodworking Machine 3D CNC Wood Carving Machine

    • 5 Axis CNC Wood Router With Rotary 2030 220V Woodworking Machine 3D CNC Wood Carving Machine

    Request a Quote
    Working Table Size(mm)2500*4000number of axes5
    voltage220v/380vmachine typeCNC Router
    No. of SpindlesATCkey selling pointsEasy To Operate
    core componentsMotor, Pressure Vessel, Gearboxcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)30weight (kg)4000
    range of spindle speed(r.p.m)18000 - 24000 rpmpositioning accuracy (mm)0.02 mm(0in)
    travel (x axis)(mm)2500 mm(98.43in)travel (y axis)(mm)4000 mm(157.48in)
    repeatability (x/y/z) (mm)0.02 mm(0in)Spindle Motor Power (kw)9
    dimension(l*w*h)2500*4000*1000Product nameHigh performance cnc router 5 axis cnc woodworking machine
    Control systemTaiwan LNCApplicationAdvertising/woodworking
    Spindle speed18000-24000 rpm/minTable SurfaceAluminum T-slot with PVC
    SpindleHQD 9kw ATC SpindleDrive motorLeadshine 1.5kw Servo
    Working size2500*4000*1000mmColorOptionl
    Max. Working Speed0-3000mm/min
