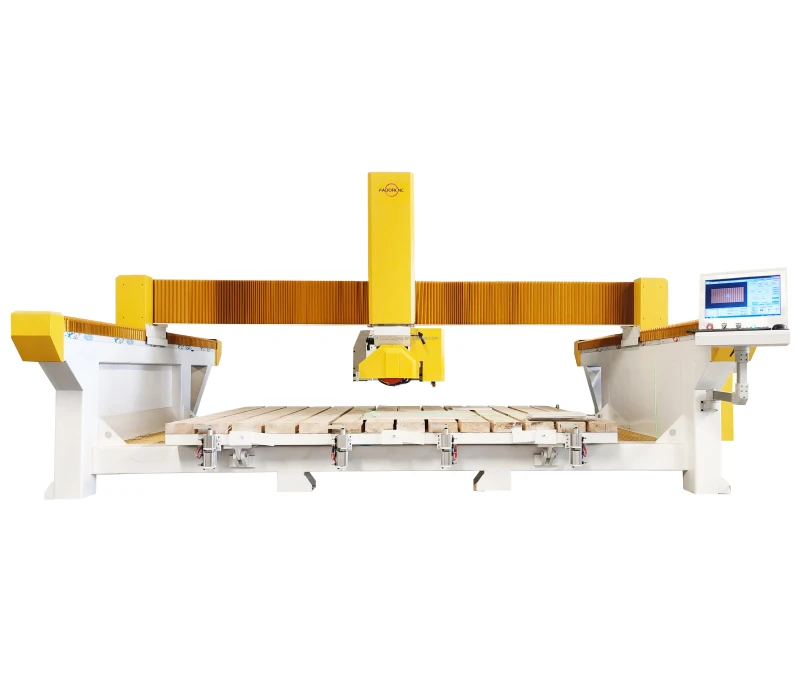

5 Axis CNC Bridge Saw Cutting Machine for Granite Marble Stone Kitchen Counter Top with Milling Head

5 Axis CNC Bridge Saw Cutting Machine for Granite Marble Stone Kitchen Counter Top with Milling Head
  • 5 Axis CNC Bridge Saw Cutting Machine for Granite Marble Stone Kitchen Counter Top with Milling Head

    • 5 Axis CNC Bridge Saw Cutting Machine for Granite Marble Stone Kitchen Counter Top with Milling Head

    Request a Quote
    Typebridge sawCutting Capacity2 in, 4 in, 3 in, 1.5 in, 2.5 in, 3.5 in
    voltage380 V, 230 V, 220 V, 240 VStyleVERTICAL
    Bevel Angle Range0°-45° left, 0°-45° rightuseStone Cutting
    core componentsMotor, Pressure Vessel, PLC, Enginemachinery test reportProvided
    Key Selling PointsEasy To Operate, High-Accuracy, Remote Monitoring, Remote Control, Competitive Pricevideo outgoing-inspectionProvided
    weight (kg)4500power (kw)30
    dimension(l*w*h)5600X3500X2700Blade Diameter(mm)400
    Control systemPLC(Support DXF files)Blade motor power7.5kw 15kw 18.5kw 22kw 26kw
    Cutting materialsStone Marble Granite TileTransmissionXY-axis:rack
    Max Cutting Length3600mmMotorServo motor with 1800W
    Working area2200x3600mmCutting thickness (max)190mm
    Head rotation0-360° at any degreeWorktable tilting0-85° at any degree
