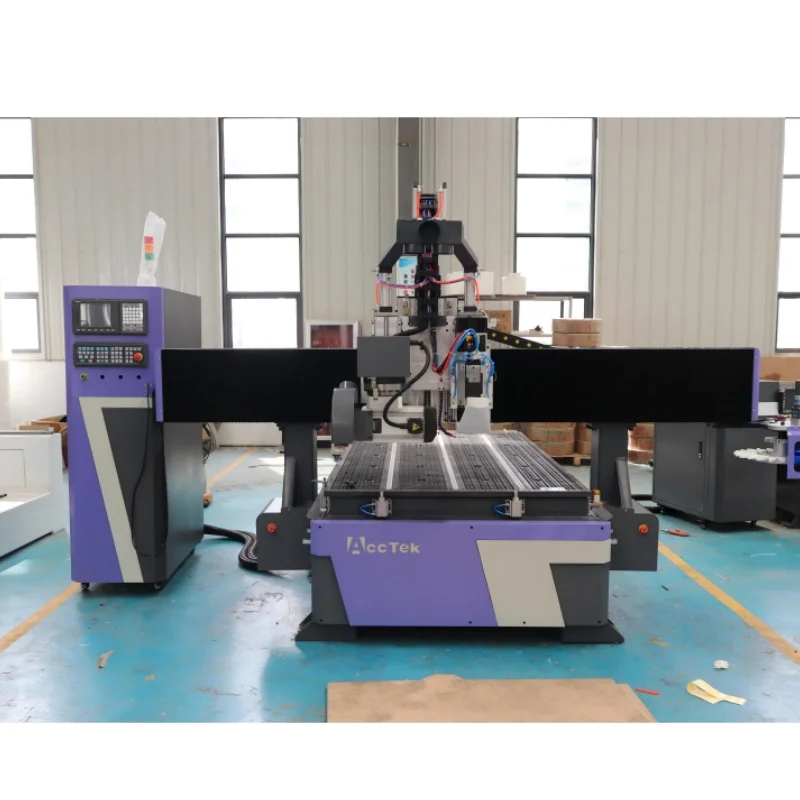

4*8ft Automatic Tool Changer CNC Router Horizontal Spindle Drilling Machine for Woodworking Furniture 9kw Air Cooled Tool
4*8ft Automatic Tool Changer CNC Router Horizontal Spindle Drilling Machine for Woodworking Furniture 9kw Air Cooled Tool
| number of axes | 3 | voltage | 380 V, 220v |
| machine type | CNC Router | No. of Spindles | 2 |
| key selling points | High Productivity | Accessory Type | Dust collection |
| core components | Motor, Engine | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 2500 | range of spindle speed(r.p.m) | 0 - 24000 |
| positioning accuracy (mm) | 0.01 | travel (x axis)(mm) | 1300 |
| travel (y axis)(mm) | 2500 | repeatability (x/y/z) (mm) | 0.01 |
| Spindle Motor Power (kw) | 9 | Model | AKM2030C |
| XYZ Working Area | 2000*3000*250mm | Table Size | 2850*3920mm |
| XYZ Traveling Positioning Accuracy | 0.01/300mm | XYZ Respositioning Accuracy | 0.03mm/300mm |
| Table Surface | T-slot and vacuum working table | Frame | Heavy Steel Tube Structure |
| Spindle Power | 9kw air cooling spindle ATC+Horizontal Spindle | Spindle Speed | 0-18000RPM |
| Drive Motor | Servo Motor |
