Professional manufacturer of woodworking machinery

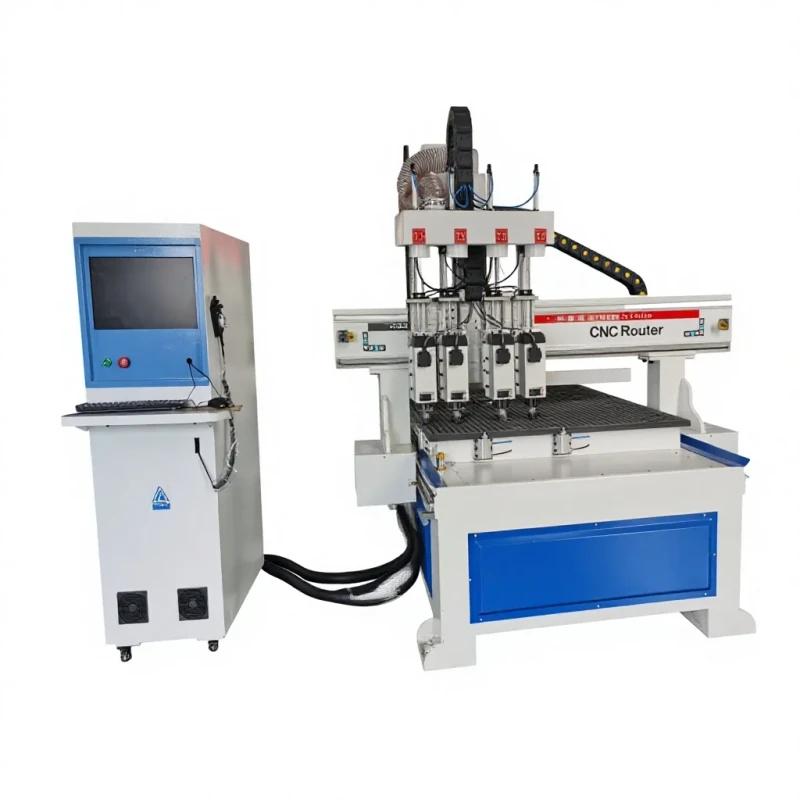

4*8ft 1325 Four Spindle Auto Tool Change CNC Router NC Studio Gear Pump for Whole House Custom Furniture Wood Nesting Machine
4*8ft 1325 Four Spindle Auto Tool Change CNC Router NC Studio Gear Pump for Whole House Custom Furniture Wood Nesting Machine
| number of axes | 3 | voltage | 380 V |
| machine type | CNC Router | No. of Spindles | Multi |
| key selling points | Multifunctional | Accessory Type | Dust collection |
| core components | Motor, Pump, Gear, PLC, Bearing | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 1800 | range of spindle speed(r.p.m) | 3000 - 24000 |
| positioning accuracy (mm) | 0.001 | travel (x axis)(mm) | 1300 |
| travel (y axis)(mm) | 2500 | repeatability (x/y/z) (mm) | 0.03 |
| Spindle Motor Power (kw) | 6KW(8.05hp) | dimension(l*w*h) | 1300*2500*200 |
| Machine Travel | 1300*2500*300mm | Guide rail | Ltalian PEK square guide rail |
| Spindle | 4*6kw Air-cooled spindle | Transmission | X/Y German rack, Z Axis PEK ball screw |
| Control system | Taiwan LNC Large screen, 3-year warranty | Servo drive | LNC matching Leadshine 758 Servo Motor |
| Reducer | Japanese Shimpo Reducer | Inverter | YD 11KW Inverter |
| Vacuum pump | 7.5kw pure copper air-cooled vacuum pump | Dust collector | 5.5kw double barrel dust collector |
