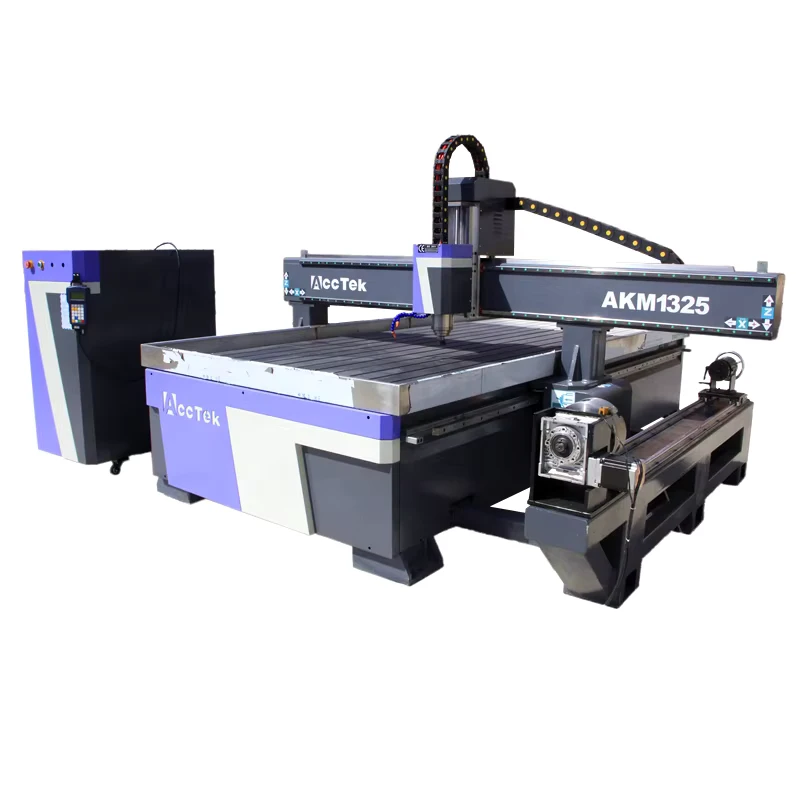

4*8 CNC Spindle 4 Axis 3D Rotary Cnc Router Wood Cutting 4th Axis CNC Carving Routers Machine with Rotary
4*8 CNC Spindle 4 Axis 3D Rotary Cnc Router Wood Cutting 4th Axis CNC Carving Routers Machine with Rotary
| Working Table Size(mm) | 1300*2500 | number of axes | 3 |
| voltage | 220V/380V | machine type | CNC Router |
| No. of Spindles | Single | key selling points | High Productivity |
| core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 850 | range of spindle speed(r.p.m) | 1 - 18000 rpm |
| positioning accuracy (mm) | 0.01 mm(0in) | travel (x axis)(mm) | 1300 mm(51.18in) |
| travel (y axis)(mm) | 2500 mm(98.43in) | repeatability (x/y/z) (mm) | 0.01 mm(0in) |
| dimension(l*w*h) | 3665*2280*1830mm(144.29*89.76*72.05in) | Guide Rail | HIWIN |
| Control system | Mach3 controller | Spindle | Water Cooling Spindle |
| Motor | 450B Stepping Motor | Spindle power | 3.0KW |
| Software | Artcam/Type3 | Transmission | X,Y-axis:gear; Z-axis:ballscrew |
| Application | wood plastic acrylic |
