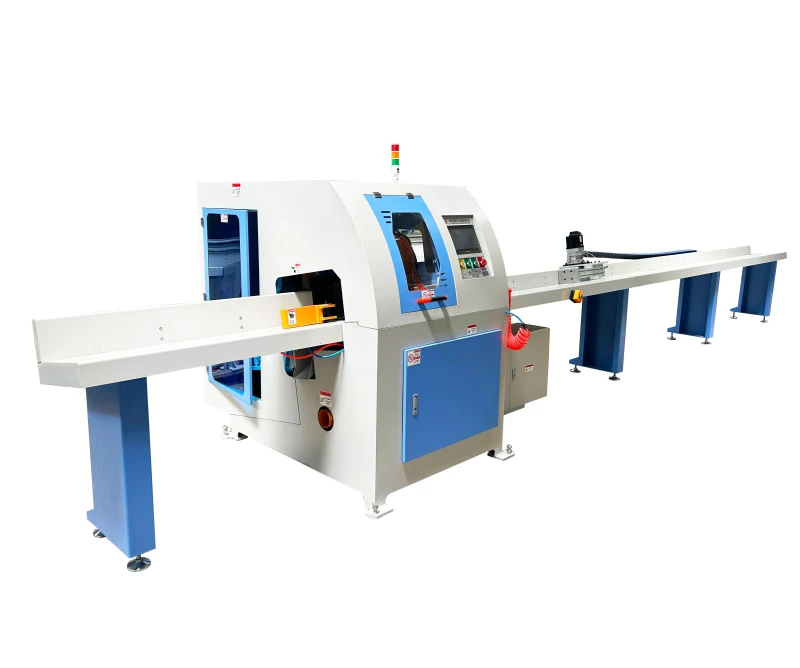

45/90 Horizontal Cross Cut Automatic Multi Saw Machine Multiple Cutting Modes PLC Controlled High Precision for Wood

45/90 Horizontal Cross Cut Automatic Multi Saw Machine Multiple Cutting Modes PLC Controlled High Precision for Wood
  • 45/90 Horizontal Cross Cut Automatic Multi Saw Machine Multiple Cutting Modes PLC Controlled High Precision for Wood

    • 45/90 Horizontal Cross Cut Automatic Multi Saw Machine Multiple Cutting Modes PLC Controlled High Precision for Wood

    Request a Quote
    TypeCircular Sawvoltage380v 50hz 3phase
    StyleHorizontaluseWoodworking
    core componentsPLCmachinery test reportProvided
    Key Selling PointsAutomaticvideo outgoing-inspectionProvided
    weight (kg)1800power (kw)6.67
    dimension(l*w*h)1100*1900*1700Product name45°/90° Automatic Cross Cut Saw
    Feeding Table Length4000mm/6000mm(optional)Cutting Width20-100mm(oblique)/20-200mm(straight)
    Cutting height10-80mm(oblique)/10-100mm(straight)Feeding speed0-60m/min
    Cutting Motor Power3kwWorking modeAutomatic feeding, automatic cutting
    Saw Blade450mmSawing accuracy±0.3mm
    Pushing transmission modeRack and pinion
