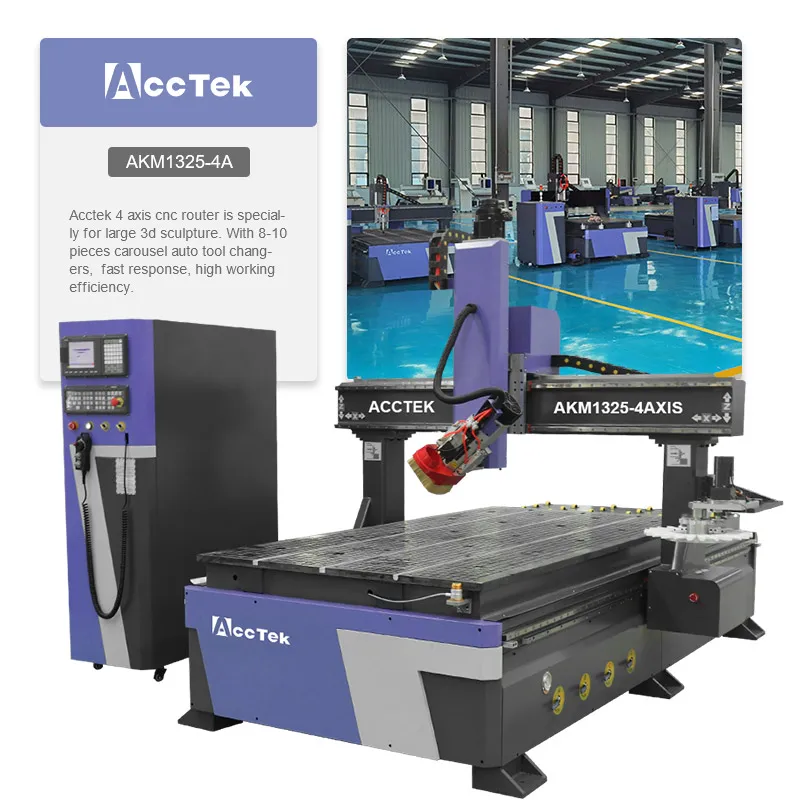

4 Axis Spindle Rotate Marble CNC Router 4 Axis CNC Vertical Machining Center

4 Axis Spindle Rotate Marble CNC Router 4 Axis CNC Vertical Machining Center
  • 4 Axis Spindle Rotate Marble CNC Router 4 Axis CNC Vertical Machining Center

    • 4 Axis Spindle Rotate Marble CNC Router 4 Axis CNC Vertical Machining Center

    Request a Quote
    Working Table Size(mm)1300×2500number of axes3
    voltage220V/380Vmachine typeCNC Router
    No. of SpindlesSinglekey selling pointsHigh-Accuracy
    core componentsMotor, Driver, DSP, Inverter, Hiwin linear rail, TBI ball screw, cnc router for woodcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)18weight (kg)1550
    range of spindle speed(r.p.m)1 - 18000 rpmpositioning accuracy (mm)0.01 mm(0in)
    travel (x axis)(mm)1300 mm(51.18in)travel (y axis)(mm)2500 mm(98.43in)
    repeatability (x/y/z) (mm)0.01 mm(0in)Spindle Motor Power (kw)6.0
    dimension(l*w*h)3880*2270*2240mm(152.76*89.37*88.19in)Working size1300*2500*500mm
    Spindle6.0KW air cooling spindleLathe structureSeamless welded steel structure
    X Y axis transmissionRack and gearZ axis transmissionTaiwan TBI ball screw
    InverterDelta inverterDriving SyestmTaiwan Delta servo motors and drivers
    WorktableT-slot tableCommandG code (HPGL, U00, mmg, plt)
