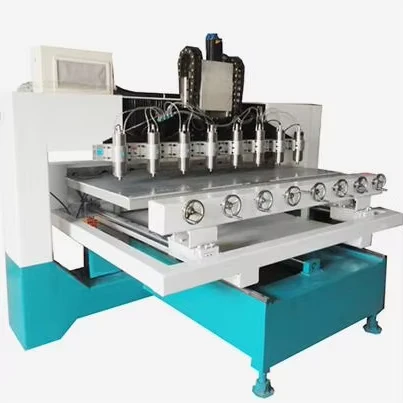

4 Axis Multi Head 10 Spindle Woodworking Machine 3D Rotary Wood Carving CMC Router

4 Axis Multi Head 10 Spindle Woodworking Machine 3D Rotary Wood Carving CMC Router
  • 4 Axis Multi Head 10 Spindle Woodworking Machine 3D Rotary Wood Carving CMC Router

    • 4 Axis Multi Head 10 Spindle Woodworking Machine 3D Rotary Wood Carving CMC Router

    Request a Quote
    Working Table Size(mm)1200*2500number of axes4
    voltage380v /220vmachine typeCNC Router
    No. of SpindlesMultikey selling pointsMultifunctional
    core componentsMotor, PLC, Enginecnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)9weight (kg)1800
    range of spindle speed(r.p.m)4000 - 24000 rpmpositioning accuracy (mm)0.03
    travel (x axis)(mm)1200travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.05Spindle Motor Power (kw)4.5
    dimension(l*w*h)300*210*180cm(118.11*82.68*70.87in)working area1200*250mm
    TransmissionXYZ ballscrewDriverservo motor
    spindle1.5/2.2/3kw water cooling spindleTablemovable table
    engravingflat and reliefcontrolDSP /NC studio
    Usageengraving /cuttingspindle speed24000rpm
    Control systemNC Studio
