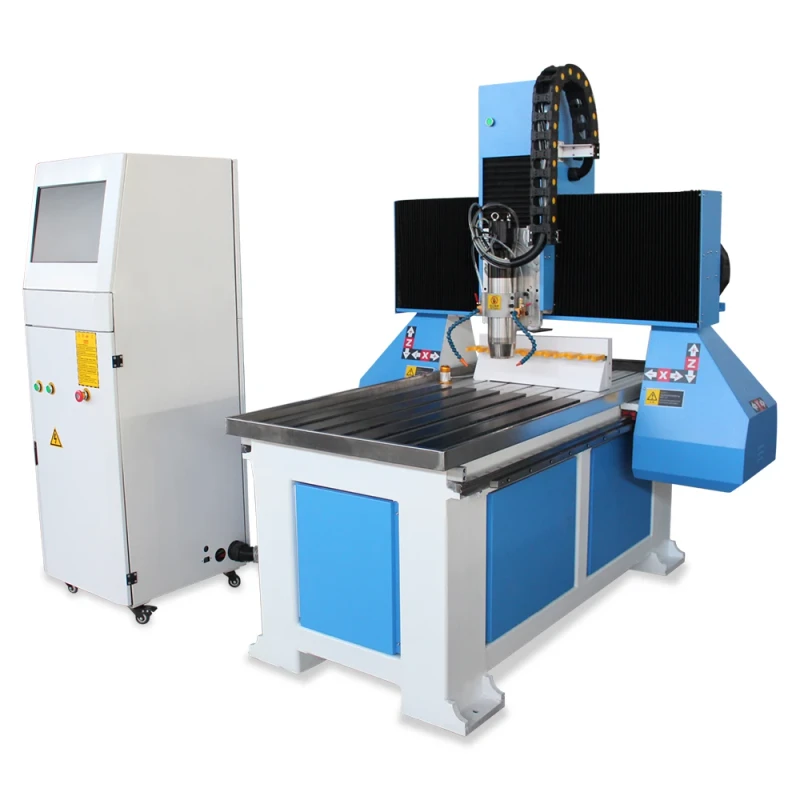

4 Axis CNC Woodworking Machine ATC Wood CNC Router 3 Axis CNC Machine Wood Router 6090 for Wood Making

4 Axis CNC Woodworking Machine ATC Wood CNC Router 3 Axis CNC Machine Wood Router 6090 for Wood Making
  • 4 Axis CNC Woodworking Machine ATC Wood CNC Router 3 Axis CNC Machine Wood Router 6090 for Wood Making

    • 4 Axis CNC Woodworking Machine ATC Wood CNC Router 3 Axis CNC Machine Wood Router 6090 for Wood Making

    Request a Quote
    Working Table Size(mm)900MM*600MM(35.43in*23.62in)number of axes3
    voltage380machine typeCNC Router
    No. of SpindlesATCkey selling pointsHigh Productivity
    core componentsBearing, Motor, Pump, Gearcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)3.2weight (kg)800
    range of spindle speed(r.p.m)0 - 24000 rpmpositioning accuracy (mm)0.02 mm(0in)
    travel (x axis)(mm)600 mm(23.62in)travel (y axis)(mm)900 mm(35.43in)
    repeatability (x/y/z) (mm)0.02 mm(0in)Spindle Motor Power (kw)3.2
    dimension(l*w*h)900MM*600MM*150MM(35.43in*23.62in*5.91in)Name6060 Atc Machine
    SpindleATC 3.2KW Air Cooling Spindle with water pipeServo MotorBig power LEADSHINE 750W Pure servo motor
    Control SystemImport Taiwan LNC control systemTool MagazineLinear 6 tools position magazine
    XY axisOriginal Taiwan HIWIN 25 Square railZ axisOriginalTBI 2510 Ball Screw
    Machine TableCustomized vertical machine table ,25MM thickness AluminumVoltage220V/One PHASE
    SlinderOriginal Taiwan HIWIN 25 slinder
