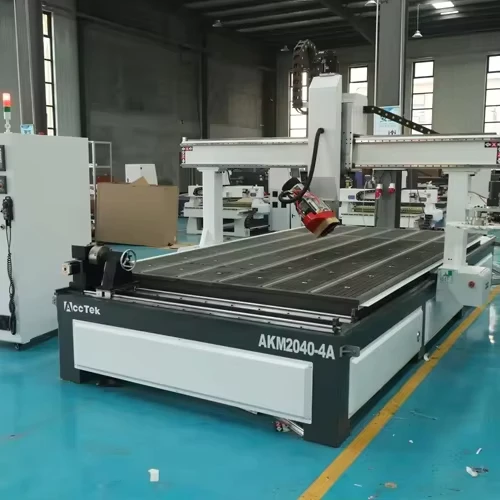

4 Axis CNC Wood Router with Rotary Axis for Table Legs Stair Columns 3D Carving Engraving Machine 1530 2040 Wood CNC Router

4 Axis CNC Wood Router with Rotary Axis for Table Legs Stair Columns 3D Carving Engraving Machine 1530 2040 Wood CNC Router
  • 4 Axis CNC Wood Router with Rotary Axis for Table Legs Stair Columns 3D Carving Engraving Machine 1530 2040 Wood CNC Router

    • 4 Axis CNC Wood Router with Rotary Axis for Table Legs Stair Columns 3D Carving Engraving Machine 1530 2040 Wood CNC Router

    Request a Quote
    number of axes4voltage380 V
    No. of SpindlesSinglekey selling pointsMultifunctional
    Accessory TypeDust collectioncore componentsBearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)2200
    range of spindle speed(r.p.m)0 - 24000positioning accuracy (mm)0.01
    travel (x axis)(mm)2000travel (y axis)(mm)4000
    repeatability (x/y/z) (mm)0.01Spindle Motor Power (kw)9.0
    Model4 Axis CNC Router with Rotary AxisWorking Area2000*4000mm
    Rotary Axis Diameter100-300 mm (Optional)Rotary Axis Length2000mm
    Positioning Accuracy±0.01 mmRepositioning Accuracy±0.02 mm
    Max Traveling Speed50-80 m/minWorking Speed15-30 m/min
    Command LanguageG CodeSoftwareArtcam / Aspire
