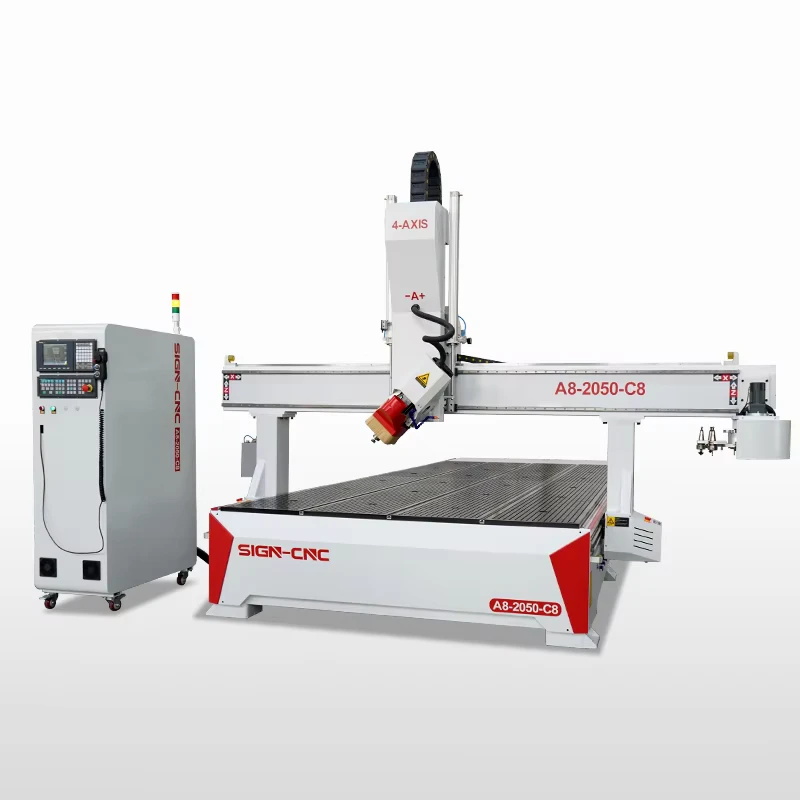

4 Axis CNC Router 2000x5000mm with 9kW ATC 180° Rotating (±90°) for 3D Wood Carving Foam Moulding Foundry Pattern Making

4 Axis CNC Router 2000x5000mm with 9kW ATC 180° Rotating (±90°) for 3D Wood Carving Foam Moulding Foundry Pattern Making
  • 4 Axis CNC Router 2000x5000mm with 9kW ATC 180° Rotating (±90°) for 3D Wood Carving Foam Moulding Foundry Pattern Making

    • 4 Axis CNC Router 2000x5000mm with 9kW ATC 180° Rotating (±90°) for 3D Wood Carving Foam Moulding Foundry Pattern Making

    Request a Quote
    number of axes4voltage380 V
    machine typeCNC RouterNo. of SpindlesATC
    key selling pointsMultifunctionalAccessory TypeScanner, Dust collection
    core componentsBearing, Pump, Motor, Gearcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    weight (kg)1600range of spindle speed(r.p.m)0 - 24000
    positioning accuracy (mm)0.05travel (x axis)(mm)2000
    travel (y axis)(mm)5000repeatability (x/y/z) (mm)0.05
    Spindle Motor Power (kw)9dimension(l*w*h)2000*5000*400MM(78.74*196.85*15.75in)
    Spindle Power9.0KW ATC air-cooled ISO30-ER32 spindleSpindle Speed0-24000RPM
    InverterDelta high frequency 11KW inverterControl SystemSyntec 60WE bus control system (4-axis)
    Electrical DevicesFrench Schneider electrical devicesTool MagazineDisc type 8 tools changer magazine
    SoftwareArtcam with post processorDust Collector3KW-380V comes with stand,brush and hose
    A-axis SwingSpindle swing 180°( left and right ±90°)Table SurfaceVacuum table with T-slot and 7.5KW vacuum pump
