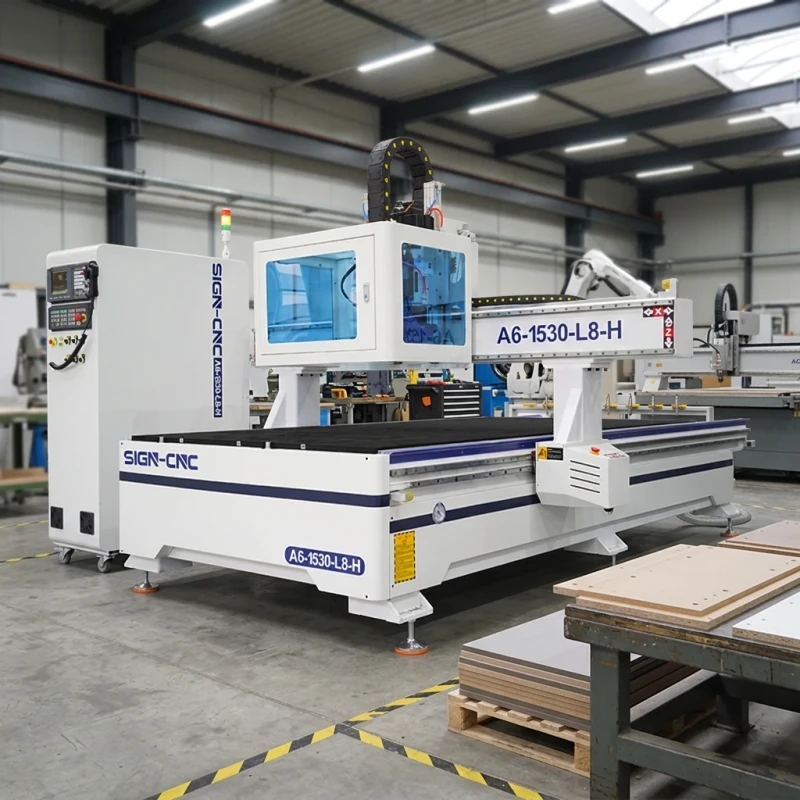

4 Axis CNC Router 1500x3000mm with Horizontal Spindle 9KW ATC Spindle + Syntec 60W Control System Vacuum Table for Woodworking
4 Axis CNC Router 1500x3000mm with Horizontal Spindle 9KW ATC Spindle + Syntec 60W Control System Vacuum Table for Woodworking
| number of axes | 3 | voltage | 380 V, 200 V, 110 V |
| machine type | CNC Router | No. of Spindles | Single |
| key selling points | Automatic | Accessory Type | Dust collection |
| core components | Gear, Pump, Motor, Bearing | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 1600 | positioning accuracy (mm) | 0.01 |
| travel (x axis)(mm) | 1500 | travel (y axis)(mm) | 3000 |
| repeatability (x/y/z) (mm) | 0.01 | Spindle Motor Power (kw) | 9 |
| dimension(l*w*h) | 1500*3000*2000mm(59.06*118.11*78.74in) | Inverter | Delta high frequency 11KW inverter |
| Motor and driver | Syntec 1000W AC servo motor and driver (Z-axis motor with brake) | Reducer | X, Y motor with Japan Shimpo planetary reducer |
| Horizontal Spindle | Horizontal 3.5KW double drill spindle with folinn 4KW inverter | Control System | Syntec 60WE bus control system |
| Electrical devices | French Schneider electrical devices | Working table | Vacuum table with T-slot and 7.5KW vacuum pump |
| Dust collector | 3KW-380V comes with stand,brush and hose | Spindle | 9.0KW ATC air-cooled ISO30-ER32 spindle |
| Tool magazine | Place of put the cutter with 8 position |
