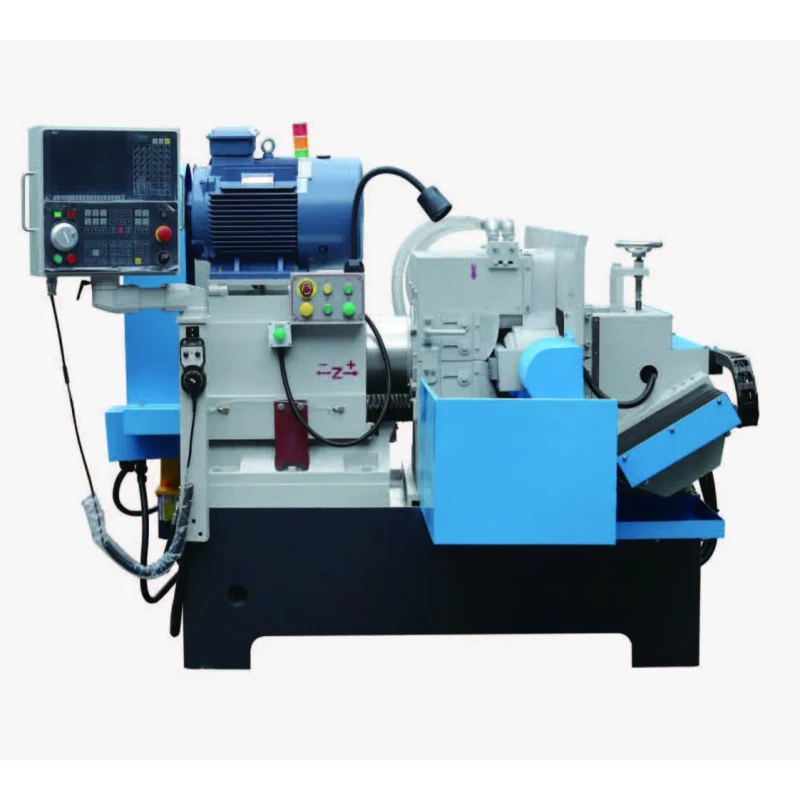

4-Axis CNC Circular Knife Grinding Machine for Various Knives, Shears and Shaped Blades

4-Axis CNC Circular Knife Grinding Machine for Various Knives, Shears and Shaped Blades
  • 4-Axis CNC Circular Knife Grinding Machine for Various Knives, Shears and Shaped Blades

    • 4-Axis CNC Circular Knife Grinding Machine for Various Knives, Shears and Shaped Blades

    Request a Quote
    voltage380V 50HZ/Customizecnc or notCNC
    machinery test reportProvidedcore componentsMotor, Bearing, Gearbox, Engine, Gear, Pressure Vessel, Pump, PLC
    key selling pointsHigh-accuracy. Circular blade. Special shape bladevideo outgoing-inspectionProvided
    grinding length(mm)380table travel (x) (mm)170
    table travel (y) (mm)380wheel size(mm)450
    table size(mm)Actual grind length 380mmweight (kg)3500
    power (kw)18.5surface roughness(μm)0.2 μm
    dimension(l*w*h)2350x1850x2000mm(92.52x72.83x78.74in)TypeSurface Grinding Machine
    KeywordsCNC Circular Blade GrinderGrinding wheel size450x370x125mm
    Appliable materialSteel,knife, round knife and scissor, etc.CNC SystemHuazhong CNC System
    Max. Grinding Lengthgrind-able length 380mm,grindable circular arc diameter 220mmGrinding wheel linear speed30m/s
    Main shaft box max. travel(Z-axis)150mmSwift angle of Y-axis+32° ~-30°
    MotorChangable
