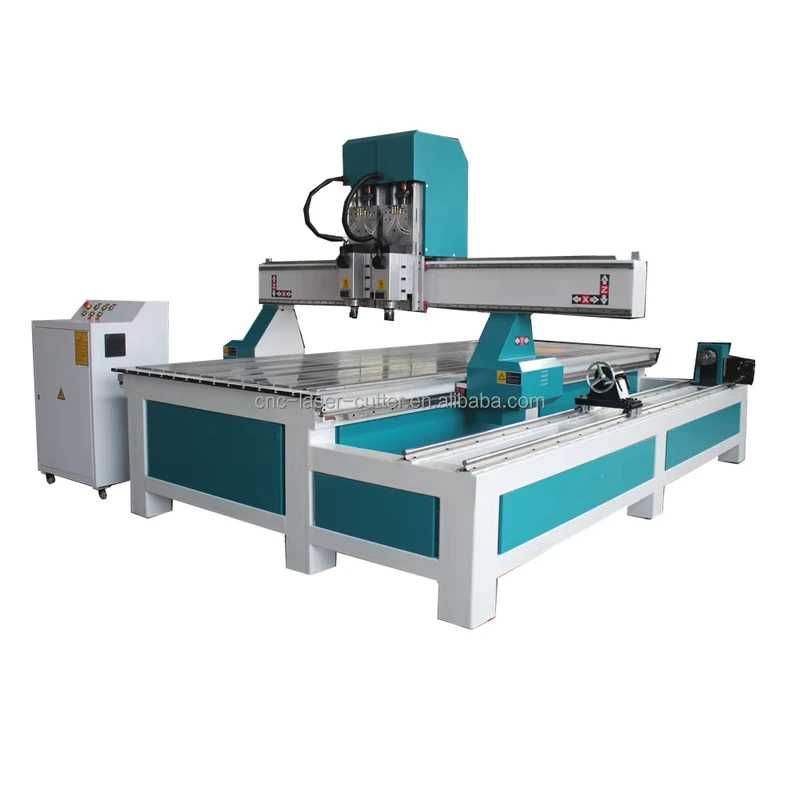

4 Axis Cnc Chair Table Legs Carving Machine Rotary Sculpture Wood Carving Cnc Router Machine
4 Axis Cnc Chair Table Legs Carving Machine Rotary Sculpture Wood Carving Cnc Router Machine
| Working Table Size(mm) | 1300×2500 | number of axes | 4 |
| voltage | 220/380V | machine type | CNC Router |
| No. of Spindles | Single | key selling points | High Rigidity |
| core components | Motor, Pump, Engine | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 3 | weight (kg) | 1200 |
| range of spindle speed(r.p.m) | 1 - 24000 rpm | positioning accuracy (mm) | 0.05 mm(0in) |
| travel (x axis)(mm) | 1300 mm(51.18in) | travel (y axis)(mm) | 2500 mm(98.43in) |
| repeatability (x/y/z) (mm) | 0.02 mm(0in) | Spindle Motor Power (kw) | 3 |
| dimension(l*w*h) | 3200*2150*1900 | Product name | 4 axis CNC Wood Working Machine |
| Application | MDF WOOD ACRYLIC ALUMINUM | Spindle | 3/4.5/5.5kw/6kw Spindle |
| Motor | Stepper Motor/servo motor | Control system | Nc-studio/Mach3/DSP Control System |
| Transmission | XY-axis:rack/z axis-TBI Ball Screw | Inverter | Fuling Inverter |
| Software | Ucancam / ArtCam/TYPE3 | Working area | 1300x2500mm |
| Table | T-slot Table+PVC |
