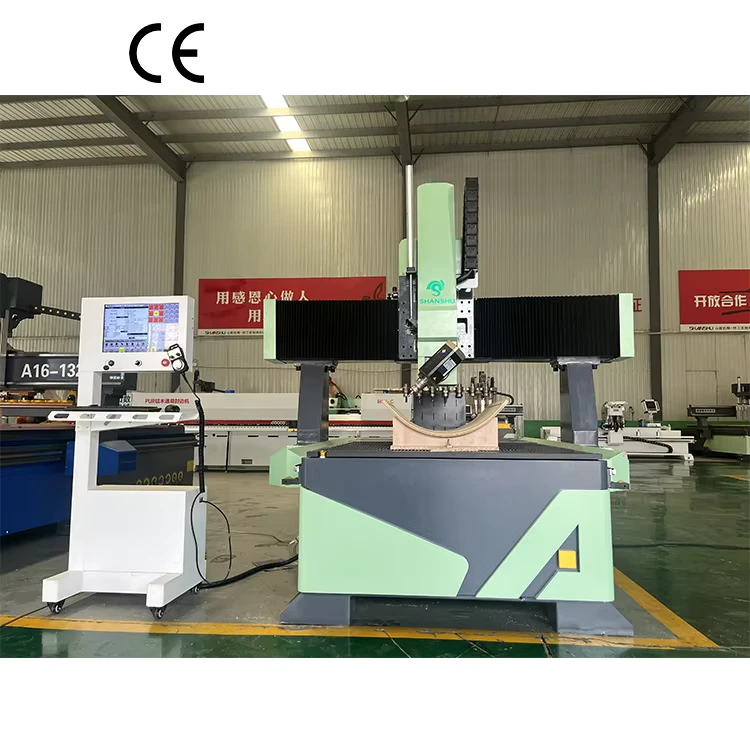

4 Axis ATC CNC Router 1414 Woodworking Machine Machine Model With Swing Head Can Be Rotated 180 Degree Left and Right

4 Axis ATC CNC Router 1414 Woodworking Machine Machine Model With Swing Head Can Be Rotated 180 Degree Left and Right
  • 4 Axis ATC CNC Router 1414 Woodworking Machine Machine Model With Swing Head Can Be Rotated 180 Degree Left and Right

    • 4 Axis ATC CNC Router 1414 Woodworking Machine Machine Model With Swing Head Can Be Rotated 180 Degree Left and Right

    Request a Quote
    Working Table Size(mm)1300*2800number of axes4
    voltage380V / 220Vmachine typeCNC Router
    No. of SpindlesMultikey selling pointsEasy To Operate
    core componentsMotor, Pump, Gear, Engine, Spindlecnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    weight (kg)2100range of spindle speed(r.p.m)1 - 24000 rpm
    positioning accuracy (mm)0.01 mm(0in)travel (x axis)(mm)1300 mm(51.18in)
    travel (y axis)(mm)1300 mm(51.18in)repeatability (x/y/z) (mm)0.01 mm(0in)
    Spindle Motor Power (kw)11dimension(l*w*h)2100*2600*2200mm(82.68*102.36*86.61in)
    Product name4-axis swing Angle head ATC machining centermagazine toolIn-line 8 knife library
    driving system1.5KW servo motor driveBed structurefive-sided milling finishing, anti-deformation treatment
    reduction boxNew treasure reducerCabinet systemBuilt-in control cabinet
    vacsorb pump7.5KW high power variable frequency adsorption pump 380Vdust exhaust apparatus5.5KW high power double barrel vacuum cleaner 380V
