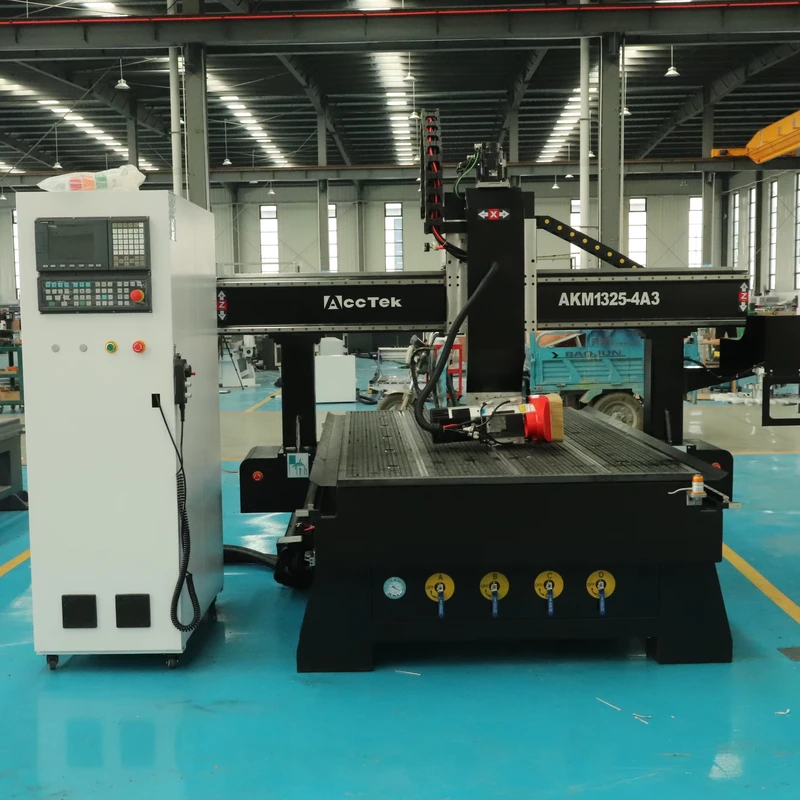

4 Axis 3D Wood Engraving Machine ATC CNC Router with Rotate Spindle 90 Degree Rotating 3D Foam Engraving CNC Tools

4 Axis 3D Wood Engraving Machine ATC CNC Router with Rotate Spindle 90 Degree Rotating 3D Foam Engraving CNC Tools
  • 4 Axis 3D Wood Engraving Machine ATC CNC Router with Rotate Spindle 90 Degree Rotating 3D Foam Engraving CNC Tools

    • 4 Axis 3D Wood Engraving Machine ATC CNC Router with Rotate Spindle 90 Degree Rotating 3D Foam Engraving CNC Tools

    Request a Quote
    number of axes4voltage380 V
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsMultifunctionalcore componentsMotor
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)1600
    range of spindle speed(r.p.m)1 - 24000positioning accuracy (mm)0.03
    travel (x axis)(mm)1200travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.03Spindle Motor Power (kw)9.0
    Key word4 axis atc cnc routerNamecnc router with rotate spindle
    Working Area1300x2500mmSpindle9.0kw air cooling atc spindle
    TransmissionX Y axis gear transmissionControllerSyntec 60W-E controller
    MotorYaskawa servo motorDriverYaskawa driver
    InverterDelta inverterReducerJapanese Shimpo reducer
