Professional manufacturer of woodworking machinery

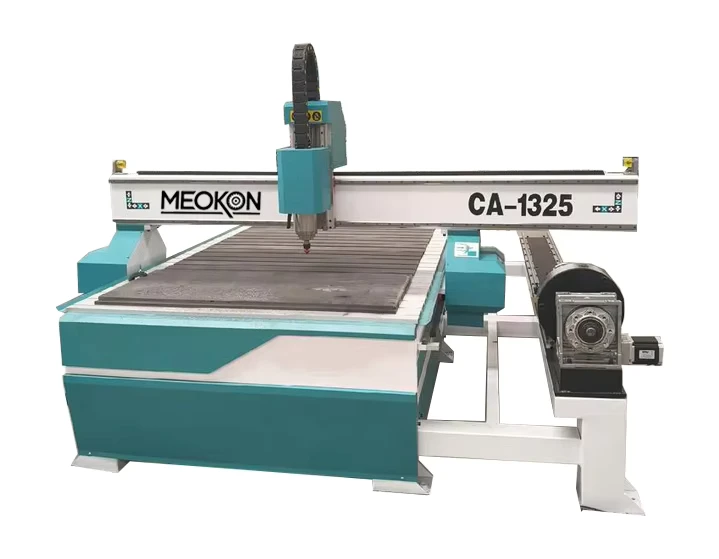

4 Axis 1325 CNC Router Woodworking Machine Side Rotary Attachment Motor Gear 3.0-6.0kW Spindle Power for MDF Acrylic Plywood
4 Axis 1325 CNC Router Woodworking Machine Side Rotary Attachment Motor Gear 3.0-6.0kW Spindle Power for MDF Acrylic Plywood
| number of axes | 4 | voltage | 220/380V |
| machine type | CNC Router | No. of Spindles | Single |
| key selling points | Multifunctional | Accessory Type | Standard |
| core components | Gear, Motor, Pump, Spindle | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 1100 | range of spindle speed(r.p.m) | 0 - 24000 rpm |
| positioning accuracy (mm) | 0.05 | travel (x axis)(mm) | 1300 |
| travel (y axis)(mm) | 2500 | repeatability (x/y/z) (mm) | 0.05 |
| Spindle Motor Power (kw) | 3.5KW / 4.5KW / 6KW | dimension(l*w*h) | 1300mm*2500mm(51.18in*98.43in) |
| Product name | Cnc Router Wood Carving Machine | Working Area | 1300*2500mm |
| Spindle Power | Spindle Power 3.0kW/4.5kW/6.0kW Optional | With Side Rotary Axis | With Side-mounted Rotary Axis |
| Control System | Nc-studio/Mach3/DSP Control System | Material Application | Wood / Acrylic / PVC / Soft Metal |
| Working Voltage | 380V/220V Optional | Machine Structure | Thickened Welded Bed, Heavy-duty Structure |
