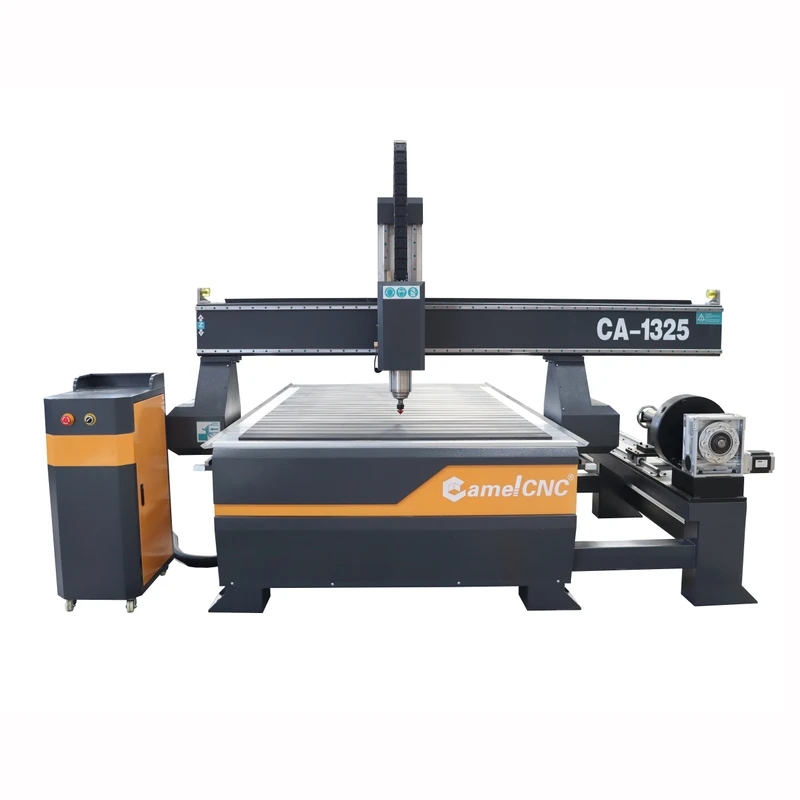

3D Wood Carving Engraving Side Rotary 4 Axis CA-1325 CNC Router Machine

3D Wood Carving Engraving Side Rotary 4 Axis CA-1325 CNC Router Machine
  • 3D Wood Carving Engraving Side Rotary 4 Axis CA-1325 CNC Router Machine

    • 3D Wood Carving Engraving Side Rotary 4 Axis CA-1325 CNC Router Machine

    Request a Quote
    Working Table Size(mm)1300×2500number of axes4
    voltageAC380V, three phase 50/60Hzmachine typeCNC Router
    No. of SpindlesSinglekey selling pointsEasy To Operate
    core componentsMotor, Gear, Pump, Othercnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)10weight (kg)2400
    range of spindle speed(r.p.m)0 - 24000 rpmpositioning accuracy (mm)0.03
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.05dimension(l*w*h)1300*2500*200
    Lathe BedHeavy Duty Square steel tube frame lathe bedMotor and driverStepper motor and drive
    Inverter4kw Best inverterControl SystemNC studio control system
    spindleWater cooling spindleSoftwareUcancam, Artcam,JDpanint etc.
    Running circumstanceTemperature: 0℃~45℃, Relative humidity: 30%~75%Electricity cabinetIndependent Cabinet
