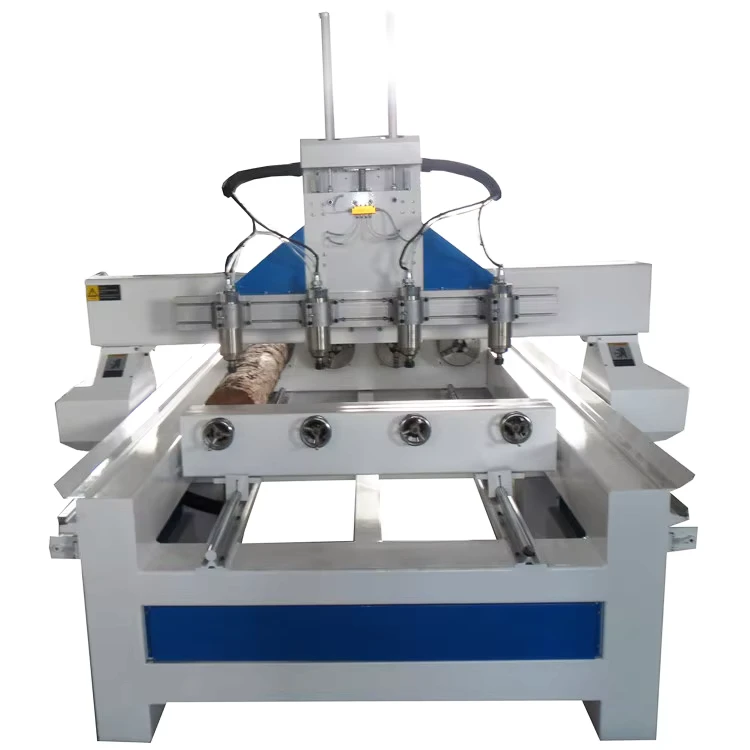

3D Rotary Device 4 Axis Multi Head CNC Carving Engraving Machine 1325 4 Spindles Wood CNC Router
3D Rotary Device 4 Axis Multi Head CNC Carving Engraving Machine 1325 4 Spindles Wood CNC Router
| Working Table Size(mm) | 1300×2500 | number of axes | 4 |
| machine type | CNC Router | No. of Spindles | Multi |
| key selling points | Easy To Operate | core components | Motor |
| cnc or not | CNC | video outgoing-inspection | Provided |
| machinery test report | Provided | weight (kg) | 1600 |
| range of spindle speed(r.p.m) | 18000 - 24000 rpm | positioning accuracy (mm) | 0.01 mm(0in) |
| travel (x axis)(mm) | 1300 mm(51.18in) | travel (y axis)(mm) | 2500 mm(98.43in) |
| repeatability (x/y/z) (mm) | 0.01 mm(0in) | Spindle Motor Power (kw) | 3.2 |
| Product name | CNC Wood Working Machine | Control system | Nc-studio/Mach3/DSP Control System |
| Spindle | 3.2kw Water Cooling Spindle | Motor | Servo Motor |
| Table Surface | Vacuum Combined T-slot Table | Inverter | Fuling inverter |
| Guide rail | Taiwan Hiwin Square Guide Rail | Transmission | Taiwan TBI Ball Screw |
| Keywords | Cnc Wood Router Engraver | After-sales Service Provided | Online Support |
