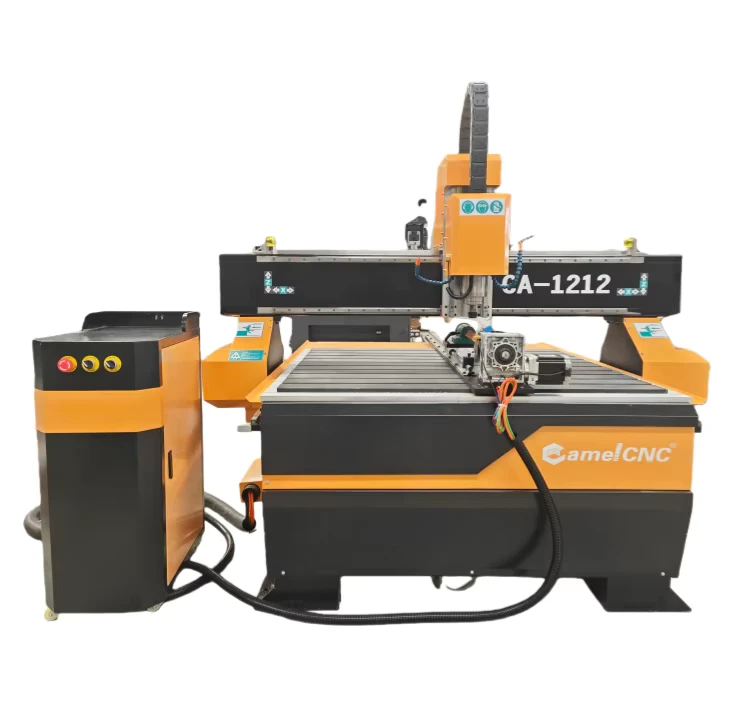

3D Rotary Cnc Milling Machine 4 Axis Cnc Router Machine for Wood Legs Carving Cnc Router
3D Rotary Cnc Milling Machine 4 Axis Cnc Router Machine for Wood Legs Carving Cnc Router
| number of axes | 4 | voltage | 380 V, 220V |
| machine type | CNC Router | No. of Spindles | Single |
| key selling points | Multifunctional | core components | Motor, PLC, Engine |
| cnc or not | CNC | video outgoing-inspection | Provided |
| machinery test report | Provided | weight (kg) | 900 |
| range of spindle speed(r.p.m) | 0 - 24000 | positioning accuracy (mm) | 0.03 |
| travel (x axis)(mm) | 1200 | travel (y axis)(mm) | 1200 |
| repeatability (x/y/z) (mm) | 0.05 | Spindle Motor Power (kw) | 3.2KW/4.5KW/5.5KW/6KW |
| dimension(l*w*h) | 1200*1200*200mm(47.24*47.24*7.87in) | Product name | Woodworking Cnc Router Machine |
| Keywords | cnc router | Spindle | 3.5kw Air Cooling Spindle/3.2kw HQD water cooling spindle |
| Working table | PVC and aluminum combined working table with T-slot | Control system | Nc-studio/Mach3/DSP Control System |
| guide rail | Taiwan Hiwin Square Guide Rail | Table Surface | T-slot Table |
| Application | Furniture Industry | Color | Customization |
| After-sales Service Provided | 24 Hours Online Service |
