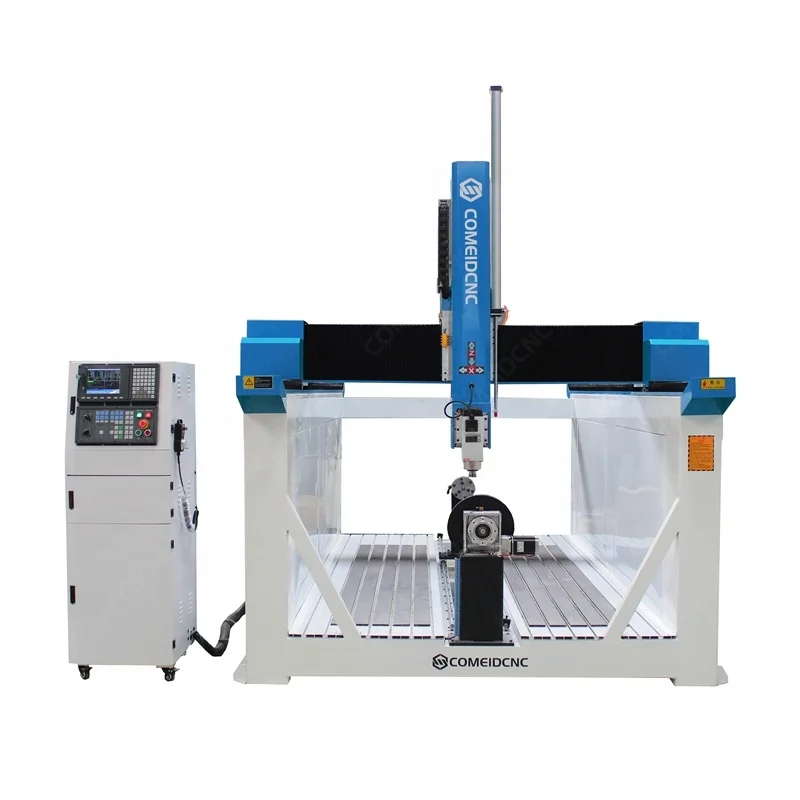

3D CNC Router Machine Automatic Vertical Foam Cutting Machine for Foam Wood Sculpture Making

3D CNC Router Machine Automatic Vertical Foam Cutting Machine for Foam Wood Sculpture Making
  • 3D CNC Router Machine Automatic Vertical Foam Cutting Machine for Foam Wood Sculpture Making

    • 3D CNC Router Machine Automatic Vertical Foam Cutting Machine for Foam Wood Sculpture Making

    Request a Quote
    number of axes4voltage380V/220V
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsHigh Safety Levelcore componentsBearing, Motor, Gear, PLC, Pressure Vessel, Gearbox
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)1800
    range of spindle speed(r.p.m)6000 - 18000 rpmpositioning accuracy (mm)0.05
    travel (x axis)(mm)2000travel (y axis)(mm)3000
    repeatability (x/y/z) (mm)0.05Spindle Motor Power (kw)6
    dimension(l*w*h)3.85*2.8*2.2Control system5 axis TaiYuan Control System
    ApplicationFoam Wood Mould engravingSoftwareUG, POWERMILL, ARTCAM
    StructureThick Steel Tube WeldingTransmissionLinear rail and ball screw
    Spindle6kw Air Cooling SpindleWorking area2000*3000*1200mm
    ColorWhite/Blue/RedProduct nameautomatic vertical foam cutting machine
