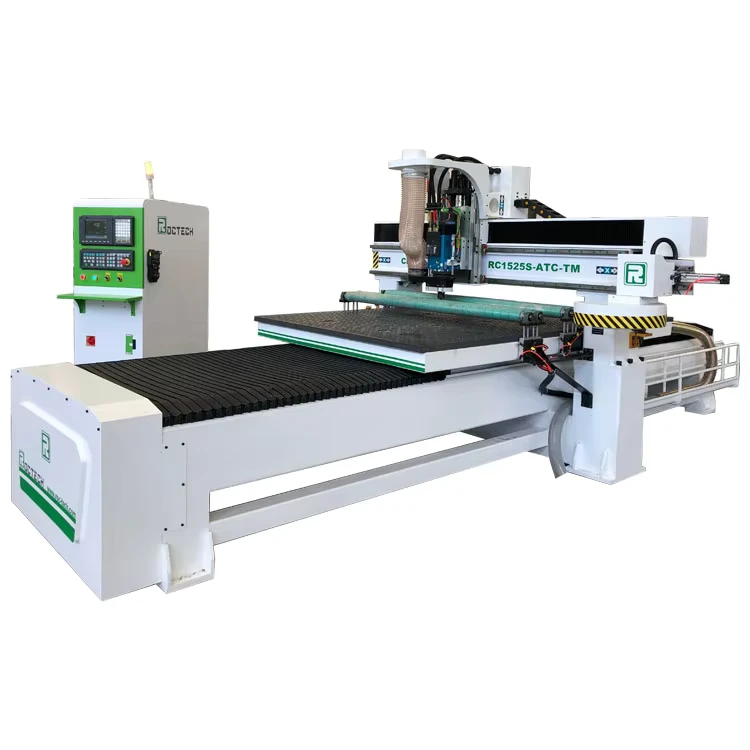

3D 3 Axis Aluminum Wood Acrylic Carving Engraving CNC Wood Router Custom ATC CNC Woodworking Machine

3D 3 Axis Aluminum Wood Acrylic Carving Engraving CNC Wood Router Custom ATC CNC Woodworking Machine
  • 3D 3 Axis Aluminum Wood Acrylic Carving Engraving CNC Wood Router Custom ATC CNC Woodworking Machine

    • 3D 3 Axis Aluminum Wood Acrylic Carving Engraving CNC Wood Router Custom ATC CNC Woodworking Machine

    Request a Quote
    number of axes3voltageAC380V, 50/60Hz, 3Ph
    machine typeCNC RouterNo. of SpindlesATC
    key selling pointsMultifunctionalcore componentsBearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Other
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)3450
    range of spindle speed(r.p.m)0 - 24000 rpmpositioning accuracy (mm)0.03
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.03Spindle Motor Power (kw)9
    dimension(l*w*h)1300*2500*150mm(51.18*98.43*5.91in)X,Y,Z Drive systemX,Y Helical rack and pinion, Z Ball screw
    Table SurfaceDouble layer vacuum tableMax rapid55000mm/min
    Max working speed20000mm/minDriving systemYaskawa servo motors
    Operating systemSyntec ControlSoftwareUG, Artcam, PowerMill, Type 3
    InventerTaiwan DeltaTool magazineCarousel tool magazine
    OptionsPress Roll
