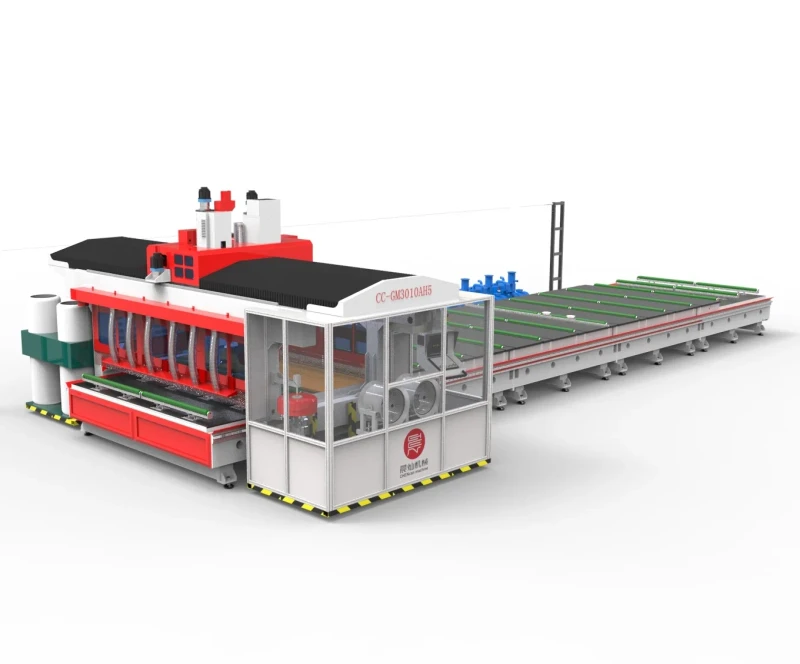

3 X 15 Meters Sandwich Panel Cutting 5 Axis Cutting Saw CNC Router
3 X 15 Meters Sandwich Panel Cutting 5 Axis Cutting Saw CNC Router
| Working Table Size(mm) | 3000*15000 | number of axes | 5 |
| voltage | 380 V | machine type | CNC Router |
| No. of Spindles | ATC | key selling points | High Productivity |
| core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, spindle | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 20000 | range of spindle speed(r.p.m) | 1 - 24000 rpm |
| positioning accuracy (mm) | 0.03 mm(0in) | travel (x axis)(mm) | 3000 mm(118.11in) |
| travel (y axis)(mm) | 15000 mm(590.55in) | repeatability (x/y/z) (mm) | 0.02 mm(0in) |
| Spindle Motor Power (kw) | 5.5 | Body structure | Heavy duty steel seamless welded |
| Working area | 3000*15000 | Control system | Taiwan Syntec |
| Spindle | 5.5 kw mechanical servo spindle | Motor | Japan Yaskawa Servo Motor |
| Transmission | High precision rack and pinion | Software | UG/powermill/Artcam |
| Table | Vacuum Adsorption + T-slot Table | Guide rail | THK Square Guide Rail |
| Weight | 20000kg |
