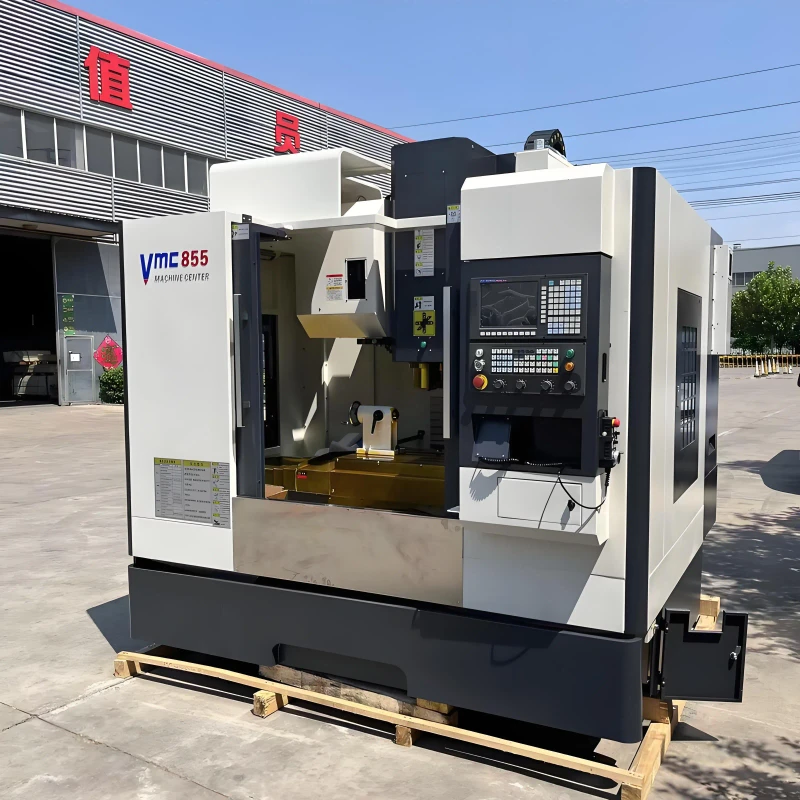

3 Axis High Precision CNC Machining Center VMC855 Metal CNC Vertical Machining Center
3 Axis High Precision CNC Machining Center VMC855 Metal CNC Vertical Machining Center
| type | VERTICAL | table travel (x) (mm) | 800 |
| table travel (y) (mm) | 550 | table travel (z) (mm) | 550 |
| repeatability (x/y/z) (mm) | ±0.003 | positioning accuracy | ±0.006 |
| spindle taper | BT40-140 | no. of spindles | Single |
| tool magazine capacity | Other | cnc control system | GSK |
| machining capacity | Heavy Duty | voltage | 220V/380V |
| table size | 1000x550 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 2 |
| key selling points | High-Accuracy | weight (t) | 7 |
| max. table load(kg) | 800 | dimension(l*w*h) | 3400*2480*2960 |
| range of spindle speed | 1 - 8000 r.p.m | rapid feed speed | 1 - 8000 mm/min(0.04-314.96in/min) |
| Product name | CNC Vertical Machining Center | Machine Type | CNC Vertical Machining Center |
| Keywords | Vmc Machine Center | CNC or Not | CNC Systemn |
| Control system | SIEMENS GSK FANUC (optional) | Processing | Metal Cutting Cnc Milling Machine |
| Spindle speed | 8000 Rpm | X/Y/Z Axis Travel | 1100*600*600 |
| Worktable size | 1200/600mm | Application | Metal Machining Center |
