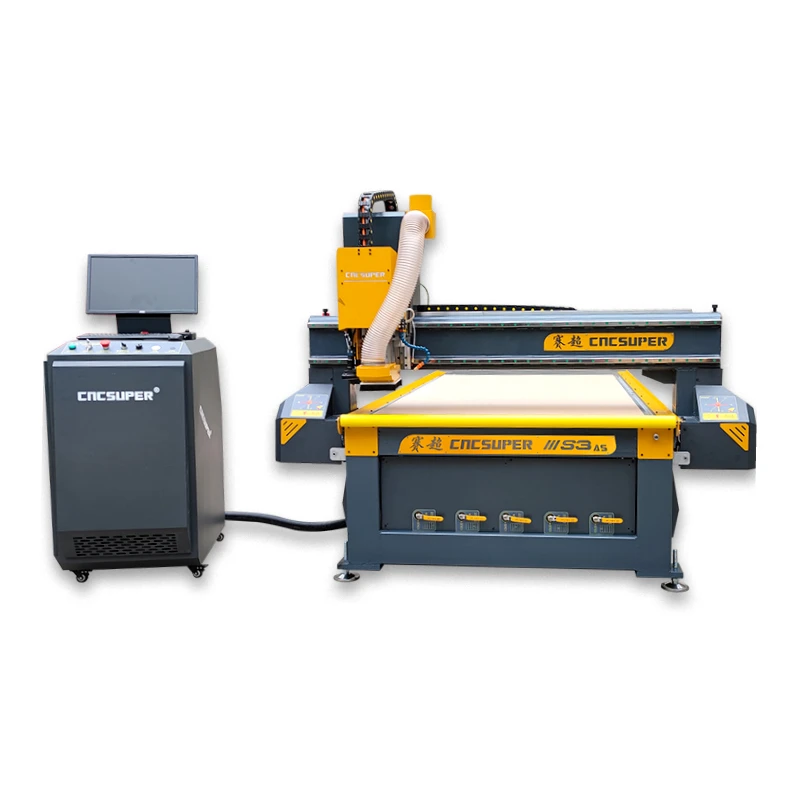

3 Axis CNC Router Milling Machine for Wood Acrylic Aluminum Plastic Sheets PCB PVC

3 Axis CNC Router Milling Machine for Wood Acrylic Aluminum Plastic Sheets PCB PVC
  • 3 Axis CNC Router Milling Machine for Wood Acrylic Aluminum Plastic Sheets PCB PVC

    • 3 Axis CNC Router Milling Machine for Wood Acrylic Aluminum Plastic Sheets PCB PVC

    Request a Quote
    number of axes3voltageAC220/380V
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsMultifunctionalcore componentsBearing, Gear, Motor, Pump
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)1250
    range of spindle speed(r.p.m)1 - 24000 rpmpositioning accuracy (mm)0.05
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.05Spindle Motor Power (kw)3kw(4.02hp)
    dimension(l*w*h)3300x2200x1900Machine structureStandard
    TableVacuum Adsorption + T-slotTransmissionHelical rack and TBI ball screw
    Guide railTaiwan original XY 25, Z 20Inverter3.7kw Fuling Inverter
    Spindle type3KW water coolingControl systemDSP/NC-Studio
    Auxiliary equipmentDust cleaning systemAfter-sales Service ProvidedVideo technical support
    After Warranty ServiceField maintenance and repair service
