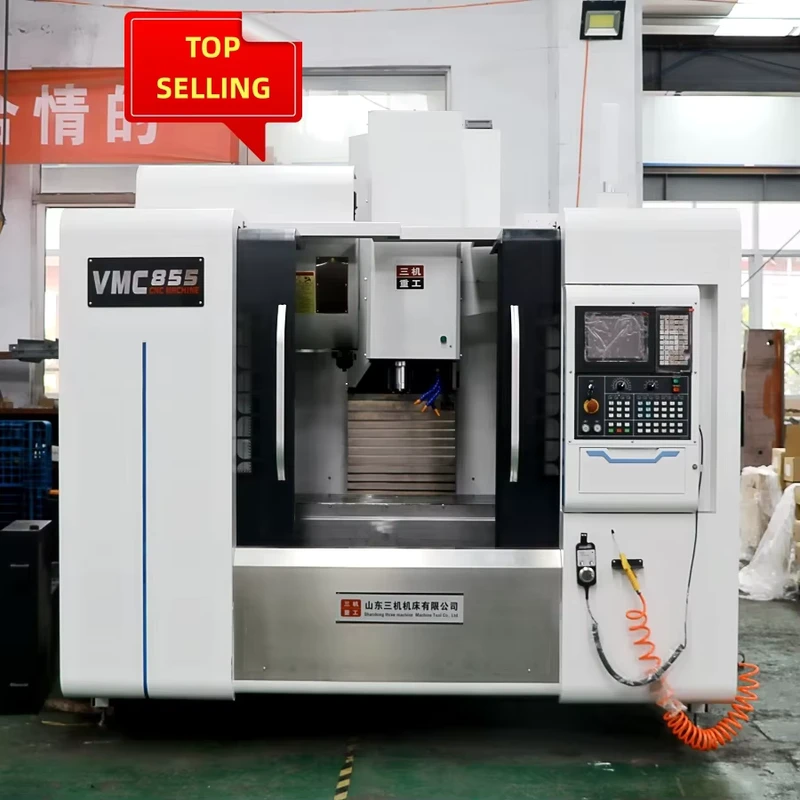

3 Axis 4 Axis 5axis Machine Center High Precision Linear Guide Rail CNC Vertical Machining Center
3 Axis 4 Axis 5axis Machine Center High Precision Linear Guide Rail CNC Vertical Machining Center
| type | VERTICAL | number of axes | 3, 4, 5 |
| table travel (x) (mm) | 850mm(33.46in) | table travel (y) (mm) | 550mm(21.65in) |
| table travel (z) (mm) | 550mm(21.65in) | repeatability (x/y/z) (mm) | ±0.005mm |
| positioning accuracy | ±0.0075mm | spindle taper | BT40 |
| no. of spindles | Single | tool magazine capacity | 16, 20, 24 |
| cnc control system | GSK, FANUC, Mitsubishi, KND, Siemens, DELEM | voltage | 380V/50Hz |
| table size | 850*550mm(33.46*21.65in) | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 7 |
| key selling points | Automatic | weight (t) | 5.5 T(6.06short tons ) |
| max. table load(kg) | 500 kg(1102.31lb) | dimension(l*w*h) | 2780*2450*2700mm(109.45*96.46*106.30in) |
| range of spindle speed | 0 - 8000 r.p.m | spindle motor power | 7.5Kw(10.06hp) |
| Keywords | Vmc Machine Center | Machine Type | CNC Vertical Machine Centers |
| Product name | CNC Machining Center | After-sales Service Provided | After-sales Service |
| Application | Metal Machining | Control system | SIEMENS GSK KND FANUC MITSUBISHI(optional) |
| Features | High Precision Economical | Function | Drilling Tapping Milling Turning |
| Color | Customers' Request | Condition | New |
| Showroom Location | Turkey, United States, France, India, Russia, Japan | Warranty of core components | 1 Year |
| Core Components | motor | Marketing Type | Hot Product 2022 |
| Feed Speed(mm/min) | 0 - 8000 mm/min |
