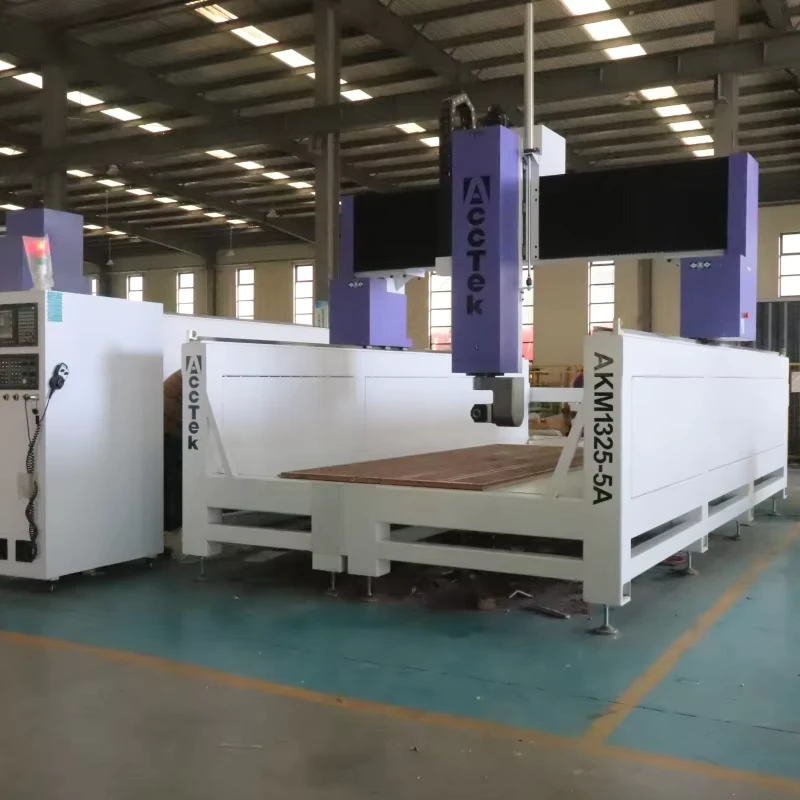

3 Axis 4 Axis 5 Axis 3D 4D Wood Mould Polystyrene Foam EPS Plastic Styrofoam Milling Router CNC Rotary Machine 1325 1530
3 Axis 4 Axis 5 Axis 3D 4D Wood Mould Polystyrene Foam EPS Plastic Styrofoam Milling Router CNC Rotary Machine 1325 1530
| number of axes | 5 | voltage | 380V |
| machine type | 5 Axis Cnc Router | No. of Spindles | Single |
| key selling points | Automatic | Accessory Type | Standard |
| core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 4500 | range of spindle speed(r.p.m) | 6000 - 24000 |
| positioning accuracy (mm) | 0.01 | travel (x axis)(mm) | 1300 |
| travel (y axis)(mm) | 2500 | repeatability (x/y/z) (mm) | 0.05 |
| Spindle Motor Power (kw) | 10 | dimension(l*w*h) | 1300*2500*600mm(51.18*98.43*23.62in) |
| Product name | 5 Axis Cnc Router Machine | Spindle | Italian Hiteco 10kw 5 axis spindle |
| Control system | Syntec controller 610MA-E5 with RTCP | Motor and driver | Yaskawa servo motor and driver |
| Inverter | Delta | X, Y structure | Rack and pinion, gear drive, Japanese THK linear guide rails 30mm |
| Z structure | Taiwan TBI ball screw, Japanese THK linear guide rails 30mm | Worktable type | Vacuum with t-slot |
| Tool magazine type | 8pc Carousel (disc) auto tool changer | Lubrication system | Auto oil lubrication |
