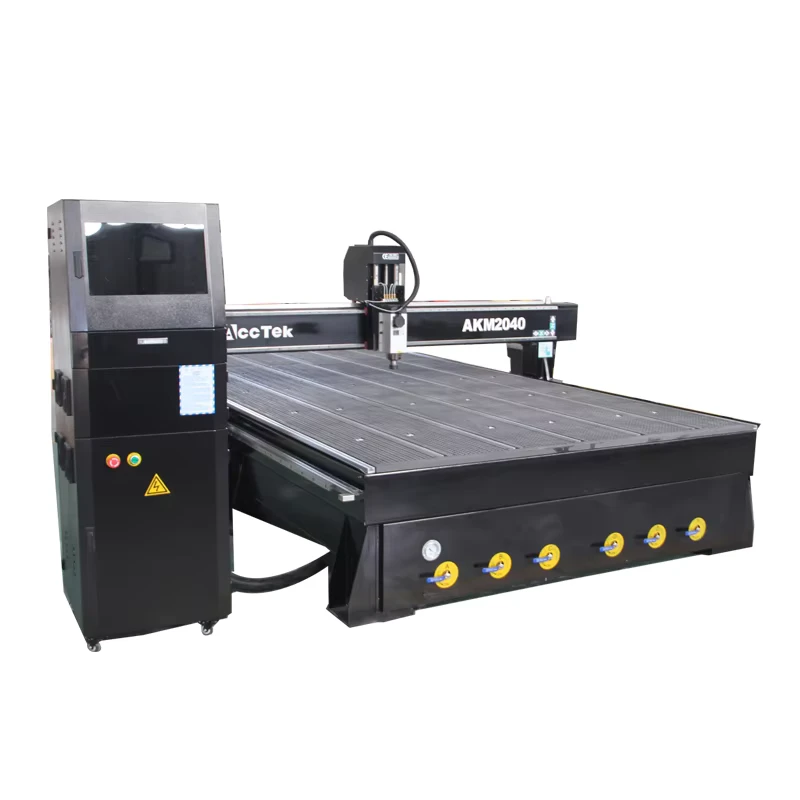

2d 3d 3axis Wood Engraver Machine CNC Router 2040 CNC Router and Engraving Machine 2000 X 4000 Usada
2d 3d 3axis Wood Engraver Machine CNC Router 2040 CNC Router and Engraving Machine 2000 X 4000 Usada
| Working Table Size(mm) | 2000*4000 | number of axes | 3 |
| voltage | 380V | machine type | CNC Router |
| No. of Spindles | Single | key selling points | High-Accuracy |
| core components | Motor, Pump, Gear, PLC | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 3.2 | weight (kg) | 1700 |
| range of spindle speed(r.p.m) | 1 - 24000 rpm | positioning accuracy (mm) | 0.03 mm(0in) |
| travel (x axis)(mm) | 2000 mm(78.74in) | travel (y axis)(mm) | 4000 mm(157.48in) |
| repeatability (x/y/z) (mm) | 0.05 mm(0in) | Spindle Motor Power (kw) | 3.2 |
| dimension(l*w*h) | 2000mm*4000mm*200mm(78.74in*157.48in*7.87in) | Model | AKM2040 wood cutting machine3d wood sofa chair cnc |
| Working Area | 2000*4000*200mm | Spindle Motor | 3.2kw water cooling spindle |
| Working Mode | Leadshine driver and stepper motor | Control System | MACH3 control system |
| Drive Mechanism | Rack and pinion transmission | Table Surface | T-Slot + Vacuum Table |
| Frame | steel structure | Lubrication System | Oil lubrication system |
| Z-axis setting | Auto Z origin tool sensor |
