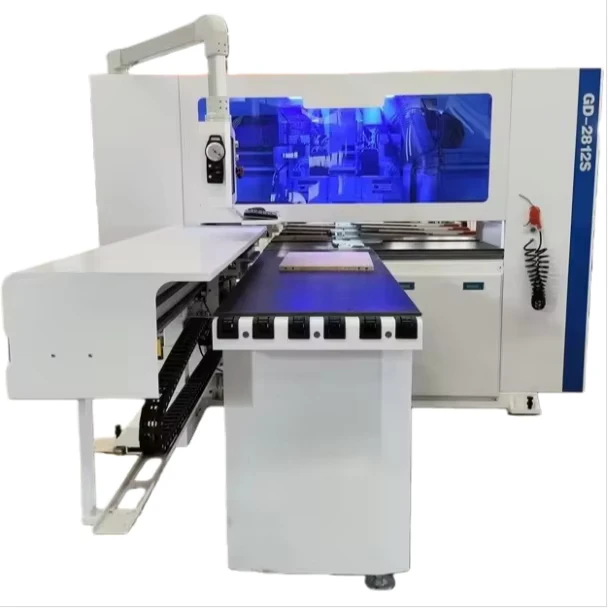

2800*1200mm CNC Six Sides Drilling Milling Machine Cabinet Door Making CNC Boring Auto CNC Drill Machine Woodworking Machinery

2800*1200mm CNC Six Sides Drilling Milling Machine Cabinet Door Making CNC Boring Auto CNC Drill Machine Woodworking Machinery
  • 2800*1200mm CNC Six Sides Drilling Milling Machine Cabinet Door Making CNC Boring Auto CNC Drill Machine Woodworking Machinery

    • 2800*1200mm CNC Six Sides Drilling Milling Machine Cabinet Door Making CNC Boring Auto CNC Drill Machine Woodworking Machinery

    Request a Quote
    typeDrilling MachineusageMDF Production
    voltage220vcore componentsMotor, Other
    Material TypeWood, PVCvideo outgoing-inspectionProvided
    key selling pointsAutomaticpower (kw)22
    weight (kg)3000dimension(l*w*h)4700x2310x2300
    Name6 Side Drilling machineFunctionWood Drilling/Milling/Grooving
    Speed ( Rpm/ min)18000Working sizelength 150-2800mm+width 50-1200mm+thickness 10-60mm
    Control systemTaiwan LNC MW2560PC+3D CAMWorking platformAir floating table+High pressure blower 0.75KW
    Driver systemDriver motor Magic (Leadshine) absolute value servoPositioningAutomatic positioning system
    Reducer /Guide railJapan Shimpoo/Taiwan square guide railKeywordsslotting machine cabinet door deep hole drilling machine
